Product Overview

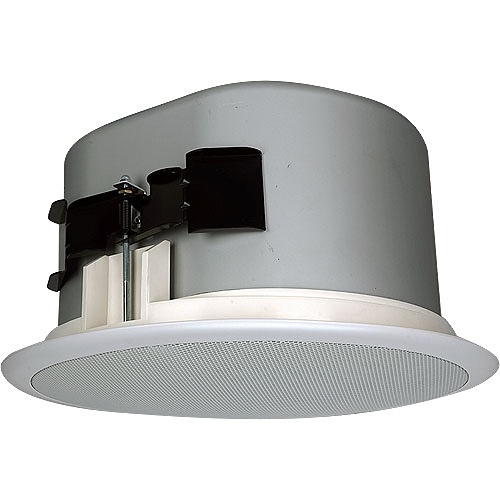

SoundTube CM800i In Ceiling Speaker in White
Patented BroadBeam Ring™ waveguide technology delivers a consistent dispersion pattern for maximum coverage area per speaker. One 8.0 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Steel grille with protective powder-coated finish for lasting durability. An average sensitivity of 90 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.
General Information
Name : SoundTube CM800i CMi Series 8" In-Ceiling Speaker with BroadBeam Tweeter, White , SoundTube
Category : Pro Speakers
UPC Code : 752830448988
Country of Origin : . Country of origin is subject to change.
Specifications
General Information
ADI Part Number : RI-CM800IWH
Brand Name : SoundTube
Manufacturer : MSE Audio
Manufacturer Part Number : CM800IWH
Product Model : CM800i
Product Name : CM800i Speaker
Product Series : CMi
Product Type : Speaker
Technical Information
Crossover Type : 2-way
Impedance : 8 Ohm
Impedance (Ohm) : 8
Maximum Frequency Response (Hz) : 22000
Minimum Frequency Response (Hz) : 71
PMPO Output Power (W) : 250
Sensitivity : 90 dB
Sensitivity (dB) : 90
Speaker Size : 8"
Tweeter Driver Material : Titanium
Tweeter Driver Size : 1"
Tweeter Driver Size (mm) : 25.4
Wireless Speaker : No
Woofer Driver Material : Polypropylene Cone
Woofer Driver Size : 8"
Woofer Driver Size (mm) : 203.2
Audio
Maximum Frequency Response : 22 kHz
Minimum Frequency Response : 71 Hz
PMPO Output Power : 250 W
RMS Output Power : 125 W
RMS Output Power (W) : 125
Physical Characteristics
Color : White
Cutout Diameter : 12.75"
Cutout Diameter (mm) : 323.85
Diameter (mm) : 296.672
Enclosure Type : Sealed
Form Factor : In-ceiling
Height : 7.9"
Height (mm) : 201.676
Speaker Installation : Indoor/Outdoor
Product Information
Diameter : 11.7"
Warranty
Limited Warranty : 5 Year
Miscellaneous
Environmental Certification : RoHS, WEEE
Environmentally Friendly : Yes
Package Contents : <ul> <li>Conduit Plate</li> <li>Euroblock</li> <li>Grille</li> <li>Paint Mask</li> <li>Tile Bridge</li> </ul>
