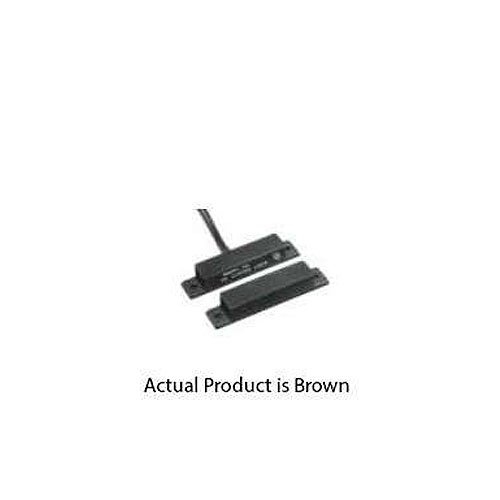

GRI 100-12WG-B 100 Series Wide Gap Miniature Surface Mount Switch Set, Flanged, Closed, N/O, A, Brown
Brand: George Risk Industries
ADI #:GI-10012WGB
Model #: 100-12WG-B
Name: GRI 100-12WG-B 100 Series Wide Gap Miniature Surface Mount Switch Set, Flanged, Closed, N/O, A, Brown
- Lifetime Warranty
- UL and ULC approved
- Available in closed loop, open loop and SPDT
Product Overview
The GRI 100 style switch set is our most popular miniature surface mount. Available in both flanged: 100-12 and without flanges: 110-12, this low profile series is perfect for residential and commercial use where a larger configuration is not appropriate. Available in regular and wide gap, the set incorporates into most decor requirements without being noticeable.
The 100 Series come with mounting screws. Both the 100 and 110 are furnished with adhesive tape for proper mounting on aluminum or vinyl. Spacers, covers, switch only, magnet only and additional adhesive tape are also available separately.
Main Features
- Lifetime Warranty
- UL and ULC approved
- Adhesive and screw mount
- Standard 12” leads or screw terminals
- Available in closed loop, open loop and SPDT
- Standard gap up to 1”
- Wide gap up to 1 1/4”
- Longer Leads, zip cord or jacketed cable upon request
- Built-in E.O.L. resistors and diodes upon request
- Switches or magnets available separately
- Private labeling available on request
General Information
Name : GRI 100-12WG-B 100 Series Wide Gap Miniature Surface Mount Switch Set, Flanged, Closed, N/O, A, Brown , George Risk IndustriesCategory : Magnetic Contacts
UPC Code : 697625003044
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : GI-10012WGB
Brand Name : GRI
Manufacturer : George Risk Industries
Manufacturer Part Number : 100-12WG-B
Product Model : 100-12WG-B
Product Name : 100-12WG-B Magnetic Contact
Product Series : 100
Product Type : Magnetic Contact
Technical Information
Contact Configuration : N.O.
Contact Form : Form A
Contact Resistance : 150000 Micro Ohm
Contact Resistance (Ohm) : 0.15
Mounting Type : Surface Mount
Standard Gap : 1.25"
Standard Gap (mm) : 31.75
Termination Style : Screw Terminal
Physical Characteristics
Application/Usage : Aluminum, Commercial, Residential, Vinyl
Color : Brown
Product Information
Contact Type : Closed Loop
Warranty
Limited Warranty : Lifetime
Miscellaneous
Additional Information : <ul> <li>Standard 12" leads or screw terminals</li> <li>Private labeling available on request</li> </ul>
Certifications & Standards : <ul> <li>UL</li> <li>ULC</li> </ul> <p></p>
Compatibility : <br /> <p></p>
Country of Origin : United States
Features : End of Line (EOL) Resistor
Package Contents : <ul> <li>100-12WG-B Magnetic Contact</li> <li>Covers</li> <li>Mounting Hardware</li> </ul>
