Product Overview

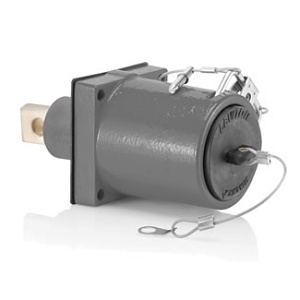

Rhino-Hide 49 Series Single Pole Male 45 Degree Receptacle (Color Coded Metal Housing, Contact, Captive Clevis Pin & Dust Cap), Single Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000 Volt, 1135 Amp Max - GRAY
Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
TPV cap prevents contamination when receptacle is not in use
Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
TPV cap prevents contamination when receptacle is not in use
Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Main Features
- High amperage 49 Series for extreme conditions
- Color-coded metal housing for easy identification
- 45° design for easier access in small panels
- Captive clevis pin and dust cap included
- Supports 313MCM-777MCM cable, 1000V, 1135A max
- Ideal for SCRs, generator stations, oil/gas rigs
- TPV cap prevents contamination when not in use
- Stainless steel clevis bracket for secure lockout
General Information
Name: Leviton 49MR1-XGY 49 Series 1 Hole Bus Bar, ML R
Category: Leviton, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 78477386354
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-49MR1XGY Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 49MR1XGY Product Line Rhino-Hide Product Name Male Receptacle, 313-777 MCM, Single Hole Bus Bar Product Type Power Socket
American Wire Gauge 10AWG, 4AWG
RoHS Compliant Not Compliant
Color Gray Material Powder-Coated Cast Aluminum
