Panduit DNF10-250FIB-L Female Disconnect Nylon Fully Insulated Connectors
DNF10-250FIB-L
|P9-10250FIBL
Shop All Panduit
Panduit DNF10-250FIB-L Female Disconnect Nylon Fully Insulated Connectors
DNF10-250FIB-L | P9-10250FIBL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

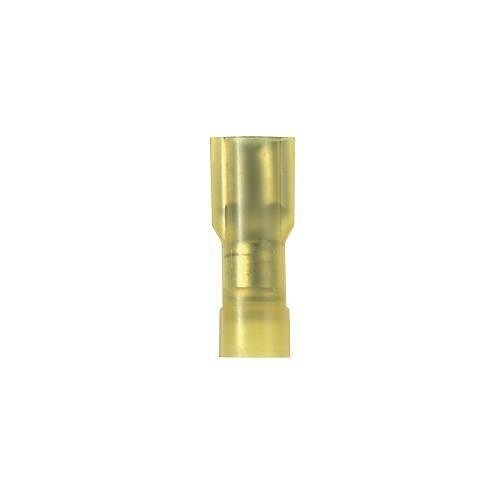

The vibration resistant femaleis made of brass and is tin-plated. It is fully insulated in a yellow, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.96" (24.4 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 50.
Main Features
- Features terminal connector
- Tin contact plating
General Information
Name: Panduit DNF10-250FIB-L Female Disconnect Nylon Fully Insulated Connectors
Category: Panduit, Data Comm & Networking, Cable Connectors, Splice Connectors
UPC Code: 74983740529
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-10250FIBL Brand Name Panduit Connector Gender Female Manufacturer PANDUIT CORP Manufacturer Part Number DNF10-250FIB-L Package Type Bulk Packaged Quantity 50 Product Name Loose Piece Disconnects Product Type Terminal Connector
American Wire Gauge 10AWG Contact Plating Tin
Connector Type Terminal
Color Yellow Material Brass, Nylon Width 0.40"
Length 1.00"
Features Insulated, Lead-free, Serrated Termination
