Product Overview

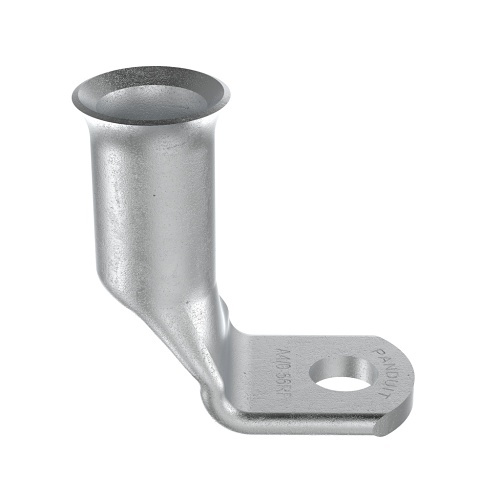

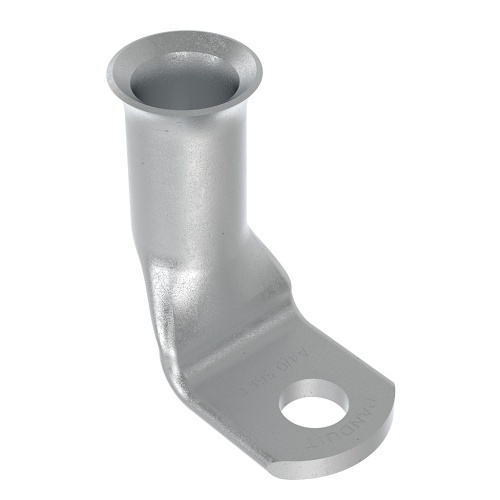

The A4/0-56RF-C Copper Compression Battery Cable Lug, 4/0 AWG, 5/16" Stud with a 90 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.
Main Features
- Copper compression battery cable lug for 4/0 AWG cables
- Tin plated to meet ASTM Class C corrosion resistance
- Includes 5/16" stud with a 90 degree bend
- Standard barrel without inspection window to prevent contaminant entry
- Flared barrel entry for easier insertion of flex conductors
- High pullout strength for heavy duty and military applications when used with Panduit tooling
General Information
Name: Panduit A4/0-56RF-C Battery Cable Lug, 1.0
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 613056793149
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-A4056RFC Brand Name Panduit Manufacturer Part Number A4/0-56RF-C
Length 1.65"
