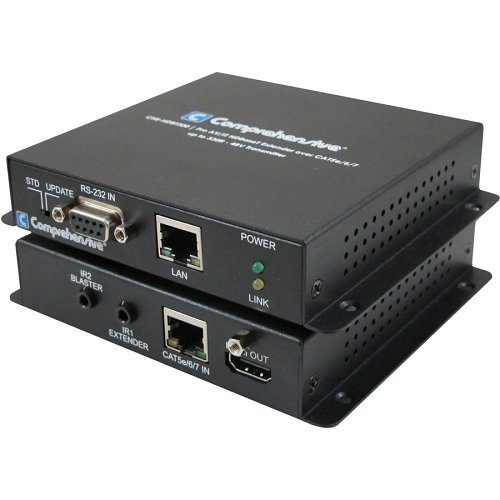

Extend your HDMI signal up to 330ft with Comprehensive's CHE-HDBT300 HDBaseT™ Extender!
Comprehensive's CHE-HDBT300 HDBaseT™ Extender, Transmitter & Receiver can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 330 feet. This HDBaseT™ Extender features full 5Play convergence allowing the transmission of video, Audio, Control (IR/RS-232), Power over Ethernet (PoE) and LAN serving (Ethernet). Supports video signals up to Ultra-high-definition [email protected], including [email protected] The receiver can be powered by the 48V PoE function of the transmitter, allowing for greater flexibility in installations. Supports Consumer Electronics Control bypass. Enclosure made of durable metal.
This Extender kit is perfect for Meeting room presentations, Home entertainment, Classrooms, and anywhere in between. All components are RoHS Compliant. 3 Year Hassle Free Warranty.
Name : Comprehensive CHE-HDBT300 Pro AV/IT HDBaseT Extender Over Cat5e/6/7 Up to 330' , Comprehensive
Category : Pro HDMI Extenders
UPC Code :
Country of Origin : China. Country of origin is subject to change.
ADI Part Number : RH-CHEHDBT30
Brand Name : Comprehensive
Connectivity Technology : Wired
Manufacturer : Comprehensive Connectivity Company
Manufacturer Part Number : CHE-HDBT300
Product Condition : New
Product Name : Video Extender Transmitter/Receiver
Product Type : Video Extender Transmitter/Receiver
Receiver Weight (Approximate) (g) : 544.311
Transmitter Weight (Approximate) (g) : 544.311
Maximum Operating Distance : 330 ft
Media Type Supported : Twisted Pair
Number of Input Devices Supported : 1
Number of Output Devices Supported : 1
Display & Graphics
Maximum Video Resolution : 4096 x 2160
HDMI In : Yes
HDMI Out : Yes
Network (RJ-45) : Yes
Number of HDMI Inputs : 1
Number of HDMI Outputs : 1
Number of Network (RJ-45) Ports : 4
Media & Performance
Maximum Operating Distance (mm) : 100584
Twisted Pair Cable Standard : Category 7
Receiver Depth : 4.20"
Receiver Depth (mm) : 106.68
Receiver Height : 0.90"
Receiver Height (mm) : 22.86
Receiver Weight (Approximate) : 1.20 lb
Receiver Width : 4"
Receiver Width (mm) : 101.6
Transmitter Depth : 4.40"
Transmitter Depth (mm) : 111.76
Transmitter Height : 0.90"
Transmitter Height (mm) : 22.86
Transmitter Weight (Approximate) : 1.20 lb
Transmitter Width : 4"
Transmitter Width (mm) : 101.6
Graphics Modes : 4K
Limited Warranty : 3 Year
Country of Origin : China
Environmental Certification : RoHS
Environmentally Friendly : Yes
