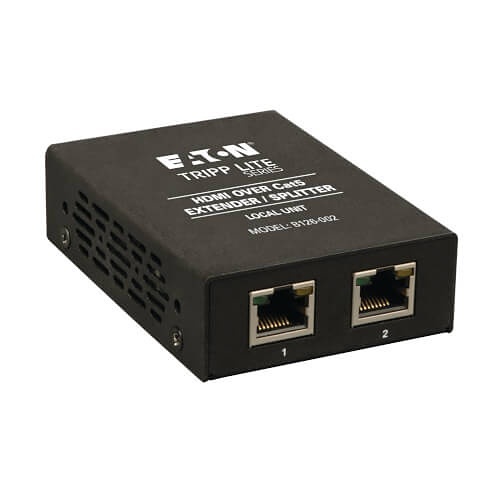

Eaton Tripp Lite B126-002 2-Port HDMI over CAT5/6 Extender/Splitter, Box-Style Transmitter for Video, Audio, up to 150' (45 m), TAA
B126-002
|TC-B126002
Shop All Eaton Tripp Lite
Eaton Tripp Lite B126-002 2-Port HDMI over CAT5/6 Extender/Splitter, Box-Style Transmitter for Video, Audio, up to 150' (45 m), TAA
B126-002 | TC-B126002
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The B126-002 2-Port HDMI over CAT5/CAT6 Extender/Splitter works with B126-Series remote receivers to split a single HDMI audio/video signal into two separate signals. It's ideal for digital signs, trade shows, presentations, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable (see P568-Series) to connect to the source and CAT5e/6 cable to transmit to the remote monitors (for best results, use 24AWG solid-wire CAT5e/6 cable, such as N202-Series). When used with B126-1A0 or B126-1A0-WP-1 active remote receivers, the Extender/Splitter can extend a 1080i (60 Hz) signal up to 200' (61m), a 1080p signal (60 Hz) up to 150' (45.7m) and a 3D signal up to 125' (38.1m). With a B126-1P0 or B126-1P0-WP-1 passive remote receiver, it can extend a 1080i (60 Hz) signal up to 100' (30.5m) and a 1080p (60 Hz) signal up to 50' (15.2m). Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays. In addition to crystal-clear video, the B126-002 delivers full, rich stereo and 7.1-Channel surround sound (multi-channel or PCM) audio. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.
Specifications
ADI Part Number TC-B126002 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number B126-002 Product Model B126-002 Product Name B126-002 2-Port HDMI over Cat5/Cat6 Extender/Splitter Product Type Video Extender Transmitter
Cable Type Category 6 Connectivity Technology Wired Maximum Operating Distance 200' Media Type Supported Twisted Pair Number of Input Devices Supported 1
TAA Compliant Yes
Maximum Video Resolution 1920 x 1080
Network (RJ-45) Yes Number of HDMI Inputs 1 Number of Network (RJ-45) Ports 2
Color Black Depth 3.6" Form Factor Pole Mount, Rack Mount, Wall Mount Height 1" Width 2.5"
Mount Type Pole Mount, Rack Mount, Wall Mount
Graphics Modes Full HD
Limited Warranty 1-Year

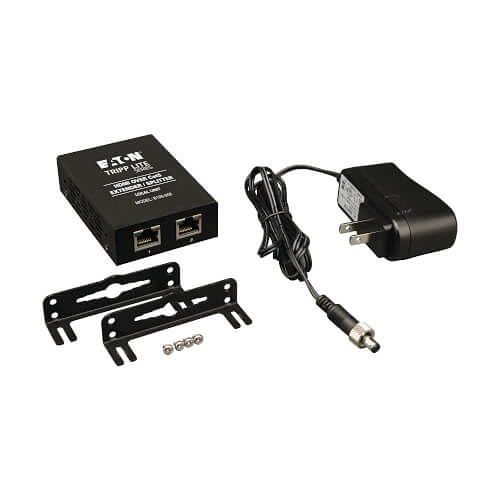

Country of Origin TW Environmentally Friendly Yes Package Contents - B126-002 2-Port HDMI over Cat5/Cat6 Extender/Splitter
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A, 5-ft. (1.52 m))
- Mounting hardware
- Owner's Manual
