Eaton Tripp Lite B126-1A0 HDMI Over CAT5/6 Extender, Box-Style Remote Receiver for Video/Audio, up to 150' (45 m), TAA
B126-1A0|TC-B1261A0
Eaton Tripp Lite B126-1A0 HDMI Over CAT5/6 Extender, Box-Style Remote Receiver for Video/Audio, up to 150' (45 m), TAA
B126-1A0|TC-B1261A0
Key Features
- Extends HDMI signals up to 150'
- Supports 1080p and 3D Resolutions
- Compatible with all HDMI video sources
Key Features
- Extends HDMI signals up to 150'
- Supports 1080p and 3D Resolutions
- Compatible with all HDMI video sources
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Extends HDMI signals up to 150'
- Supports 1080p and 3D Resolutions
- Compatible with all HDMI video sources

Eaton Tripp Lite
Eaton Tripp Lite B126-1A0 HDMI Over CAT5/6 Extender, Box-Style Remote Receiver for Video/Audio, up to 150' (45 m), TAA
B126-1A0 | TC-B1261A0
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The B126-1A0 HDMI over CAT5/CAT6 Active Remote Receiver works with a B126-002 or B126-004 transmitter (sold separately) to extend an HDMI signal to a projector, monitor or television. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. The receiver uses HDMI cable to connect to the monitor and CAT5e/6 cable to receive the signal from the transmitter or a remote repeater in the chain (for best results, use 24AWG solid-wire CAT5e/6 cable, such as N202-Series). The B126-1A0 can extend a 1080i (60 Hz) signal up to 200' (61m), a 1080p (60 Hz) signal up to 150' (45.7m) and a 3D signal up to 125' (38.1m). You can connect up to three B126-110 remote repeaters in the chain for a total of four HDMI displays and full signal extension of 700' (213.4m) (1080i), 500' (152.4m) (1080p) or 400' (122m) (3D). In addition to crystal-clear video, the B126-1A0 delivers full, rich stereo and 7.1-Channel surround sound (multi-channel or PCM) audio when paired with a B126-Series transmitter. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-Bit True Color (8-Bit per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.
Main Features
- Extends HDMI signals up to 150'
- Supports 1080p and 3D Resolutions
- Compatible with all HDMI video sources
- Plug-and-play setup, no software needed
- Supports stereo and 7.1-Channel audio
- Built-in equalization control for image adjustment
- LED Indicators for Power and signal status

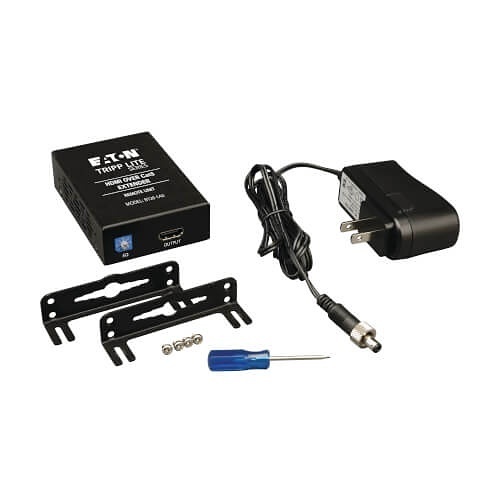

- Includes mounting hardware for easy installation
- TAA-Compliant for GSA Schedule purchases
General Information
Name: Eaton Tripp Lite B126-1A0 HDMI Over CAT5/6 Extender, Box-Style Remote Receiver for Video/Audio, up to 150' (45 m), TAA
Category: Pro AV, Commercial Video Signal Distribution, Pro HDMI Extenders
UPC Code: 037332157485
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-B1261A0 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number B126-1A0 Product Model B126-1A0 Product Name B126-1A0 Video Console Product Type Video Extender Receiver
-
Cable Type Category 6 Connectivity Technology Wired Maximum Operating Distance 200' Media Type Supported Twisted Pair Number of Input Devices Supported 1 Number of Output Devices Supported 1
-
TAA Compliant Yes
-
Maximum Video Resolution 1920 x 1080
-
Network (RJ-45) Yes Number of HDMI Outputs 1 Number of Network (RJ-45) Ports 1
-
Color Black Depth 3.6" Form Factor Wall Mount Height 1" Width 2.5"
-
Limited Warranty 1-Year
-
Country of Origin TW
