Product Overview

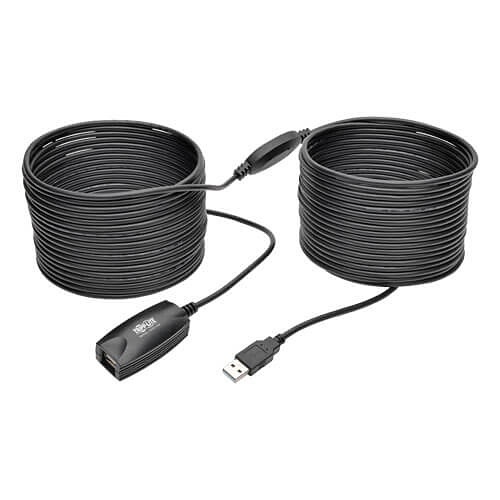

Tripp Lite's U026-15M USB 2.0 Hi-Speed Active Extension Repeater Cable (M/F) increases the length of a device cable up to 49 feet with no danger of signal loss or performance decrease. Connect the male plug to a USB port on your computer or hub and the female end to a USB device cable. A built-in bus-powered signal booster ensures peak USB 2.0 signal quality. Backward compatible with previous USB generations, this cable supports data transfer rates up to 480 Mbps.
The U026-15M works with all computers, devices and cables with USB-A connectors, and provides up to 250mA of power to a connected device (an external power supply or powered USB 2.0 hub is required for power applications stronger than 250mA). Premium foil and braid shielding delivers top-of-the-line signal quality and protection from EMI/RFI interference. Nickel-plated USB connectors with gold-plated copper contacts ensure excellent conductivity. Integral strain relief ensures the cable and connectors last a long time.

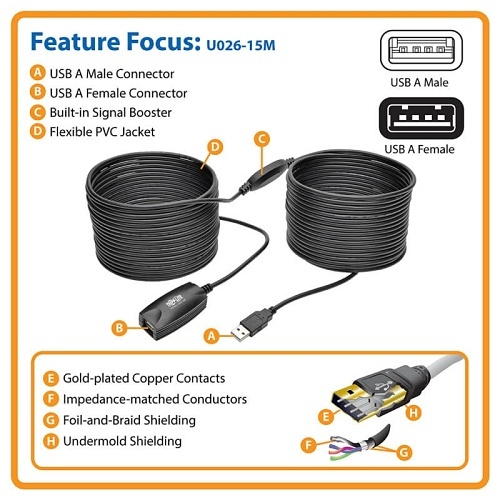

Features
Extends Transmission Distance Between USB Device and Computer by 49 ft.
- Supports data transfer rates up to 480 Mbps
- Built-in bus-powered signal booster for peak performance
- Provides up to 250mA of power to connected device
- Backward compatible with previous USB generations
Premium Construction for Superior Signal Transfer
- Premium foil and braid shielding protects against EMI/RFI

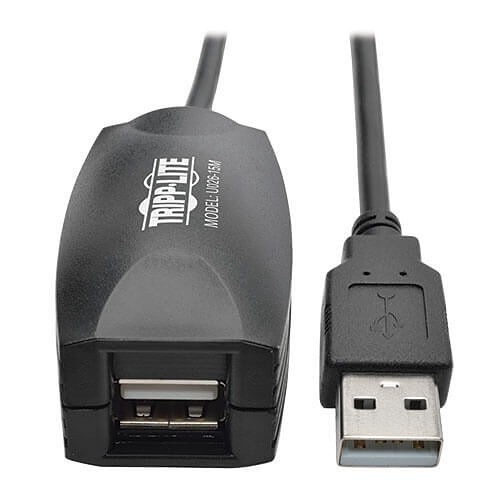

- Nickel-plated connectors with gold-plated copper contacts ensure excellent conductivity
- Works with all computers, devices and cables with USB-A connectors
- External power supply or powered USB hub required for power applications stronger than 250mA
General Information
Name : Tripp Lite U026-15M USB 2.0 Active Extension Repeater Cable, 50' (15m), M/F , Tripp Lite by Eaton
Category : Pro USB Cables
UPC Code : 037332199768
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-U02615M
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : U026-15M
Product Model : U026-15M
Product Name : USB 2.0 Hi-Speed Active Extension Repeater Cable (USB-A M/F), 15 m (49 ft)
Product Type : Data Transfer Cable
Technical Information
Cable Characteristic : Extension Cable
Connector on First End : USB Type A Male
Connector on Second End : USB Type A Female
Connector Plating : Nickel
Contact Plating : Gold
Device Supported : USB Hub
Shielding : Yes
Lock
Cable Length (mm) : 14996.16
Media & Performance
Data Transfer Rate : 480 Mbit/s
Data Transfer Rate (Bps) : 62914560
Physical Characteristics
Cable Length : 50'
Warranty
Limited Warranty : 3 Year
Miscellaneous
Country of Origin : Vietnam
Environmental Certification : RoHS
Environmentally Friendly : Yes
Features : Active, EMI/RF Protection, Repeater, Signal Booster, Strain Relief
