Product Overview

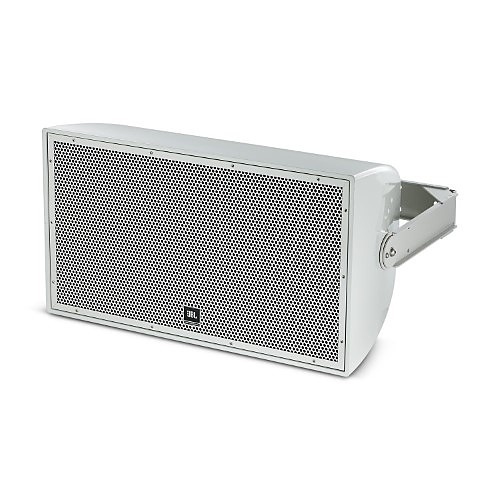

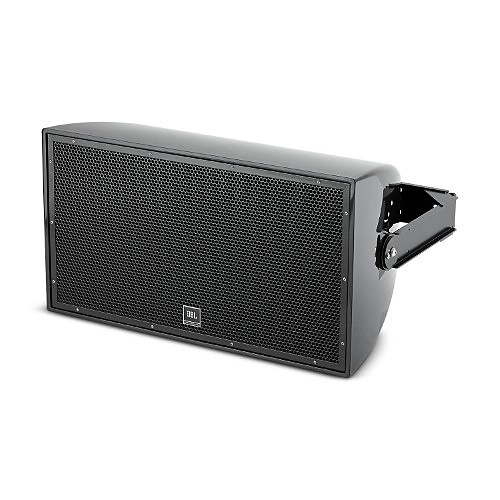

Parts are sealed on LS models (non-LS photo shown).
High Power 2-Way All Weather Loudspeaker with 1 x 12"" LF & Rotatable Horn for Life Safety Applications
The AW295-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation.
General Information
Name : JBL Professional AW295-LS Speaker, 12" 2-Way All Weather Loudspeaker with EN54-24 Certification , JBL Professional
Category : Pro Speakers
UPC Code :
Specifications
General Information
ADI Part Number : JF-AW295LSBK
Brand Name : JBL Professional
Manufacturer : Harman International Industries, Inc
Manufacturer Part Number : AW295-LS
Product Model : AW295-LS
Product Name : High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn
Product Type : Speaker
Weight (Approximate) (g) : 25200
Technical Information
Crossover Type : 2-Way
Impedance : 8 ohms
Impedance (Ohm) : 8
Maximum Frequency Response (Hz) : 18000
Minimum Frequency Response (Hz) : 106
PMPO Output Power (W) : 1600
Sensitivity : 98 dB
Sensitivity (dB) : 98
Tweeter Driver Size : 1.50"
Tweeter Driver Size (mm) : 38.1
Woofer Driver Size : 12"
Woofer Driver Size (mm) : 304.8
Audio
Maximum Frequency Response : 18 kHz
Minimum Frequency Response : 106 Hz
PMPO Output Power : 1600 W
RMS Output Power : 400W
RMS Output Power (W) : 400
Physical Characteristics
Application/Usage : Cruise Ship, Entertainment Center, Park, Sports Field, Theme Bar
Depth : 17.80"
Depth (mm) : 452
Durability : Corrosion Resistant, Weather Resistant
Height : 16.1"
Height (mm) : 409
Speaker Installation : Outdoor
Weight (Approximate) : 55.56 lb
Width : 28.8"
Width (mm) : 732
Miscellaneous
Features : Dual Voice Coils, Lightweight
Package Contents : <ul> <li>High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn</li> <li>U-type Mounting Bracket</li> </ul>
