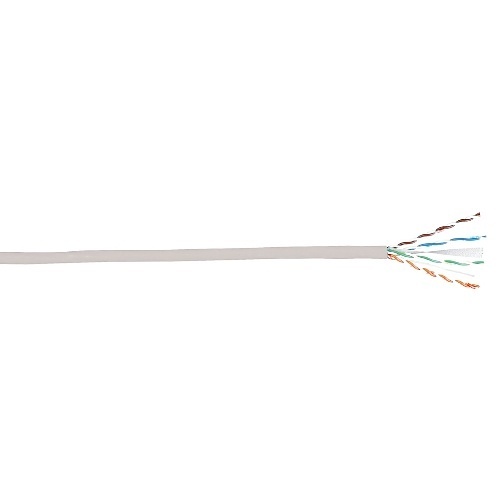

Prysmian 7131101 GenSPEED CAT6 23AWG Solid BC Plenum Cable, 1000' (304.8m) Pull-Pac II, White
7131101
|2M-7131101
Shop All Prysmian Group
Prysmian 7131101 GenSPEED CAT6 23AWG Solid BC Plenum Cable, 1000' (304.8m) Pull-Pac II, White
7131101 | 2M-7131101
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
GenSPEED® 6 Category 6 (23 AWG) cables provide maximum versatility to challenging installations with a Plenum and Outside Plant cable options.
Main Features
- Unique separator design engineered for consistent electrical performance
- TRU-Mark print legend contains footage markings from 1000' to 0'
- Third-party verified for guaranteed performance
- Made in U.S.A. Applications
- IEEE 802.3: 1000 BASE-T, 100 BASE-TX, 10 BASE-T, PoE, PoE+, PoE++
- ANSI/TIA 854: 1000 BASE-TX
- CDDI, Token Ring, ATM
- Digital Video
- Broadband and Baseband Analog Video
General Information
Name: Prysmian 7131101 GenSPEED CAT6 23AWG Solid BC Plenum Cable, 1000' (304.8m) Pull-Pac II, White
Category: Prysmian Group, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code: 79407854868
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2M-7131101 Brand Name Prysmian Group Country of Origin US Manufacturer Prysmian Group Manufacturer Part Number 7131101 Package Type Pull Box Product Line GenSPEED Product Name 6 Category 6 Cable (23 AWG) Product Type Telecom Cable
American Wire Gauge 24AWG Cable Rating Plenum Cable Type Category 6 Conductor Material Copper Device Supported ATM, Network Device Jacket Type CMP, Plenum Duplex Zip Number of Pairs 4 Shielding No Solid or Stranded Solid
Certifications & Standards RoHS
Data Transfer Rate 1.00Gbps
Cable Length 1000.00' Color White Insulation Material FEP, PO Jacket Material PVC Material Annealed Copper Weight 25.00lb
Voltage Rating 300V
Installation Type Commercial, Residential
Environmental Certification EU RoHS Environmentally Friendly Yes Features Attenuation Crosstalk Ratio Far-end (ACR-F), Attenuation to Crosstalk Ratio (ACR), Bendable, Near End Cross Talk (NEXT), PoE, PoE+, PoE++, Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT)
