Product Overview
The SW41HDBT provides enhanced features including PoC to power connected Blustream Transmitter and Receiver products, web GUI for configuration and control, source / display control via CEC, manual or automated source selection, RS-232 pass-through and control via front panel, IR, RS-232 and TCP/IP.
Main Features
- Features 2 x HDMI 2.0 and 2 x HDBaseT inputs which can be switched to simultaneous HDBaseT and HDMI outputs
- Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
- Automatic downscaling of up to 4K 60 Hz 4:4:4 video input to 4K 30 Hz 4:4:4/4K 60Hz 4:2:0 or 1080p on HDBaseT
- HDBaseT input supports 4K UHD video up to 40 m (3840 x 2160 at 30 Hz 4:4:4, 4096 x 2160 at 24 Hz 4:4:4, and 4K at 60 Hz 4:2:0), HDBaseT output supports 4K UHD video up to 40m (3840 x 2160 at 60 Hz 4:4:4) with compatible CSC receiver
- Extends HDMI 1080p up to a distance of 70m from Transmitter to SW41HDBT,and up to 70m from SW41HDBT to Receiver
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Supports PoC when used with compatible 12V HDBaseT transmitters and receivers
- Compatible with all Blustream HDBaseT transmitters and receivers
- Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
General Information

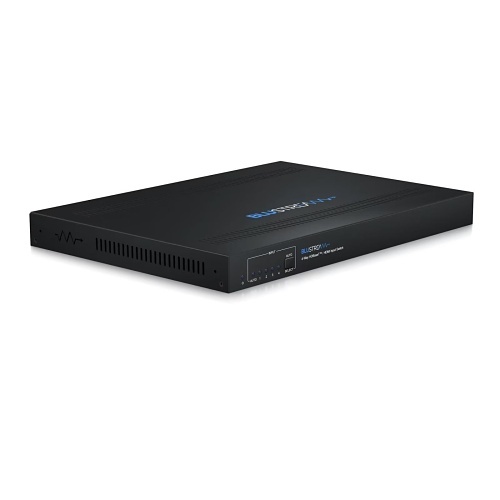

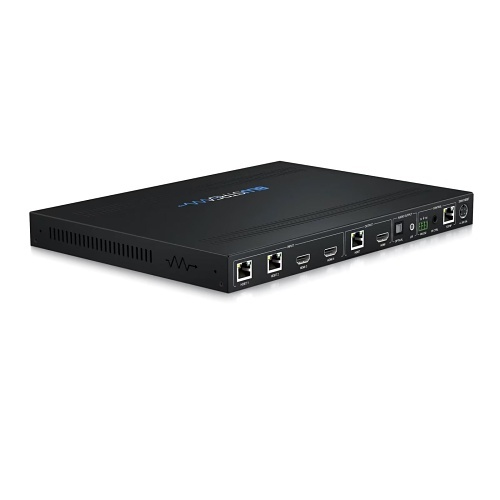

Name: Blustream SW41HDBT 4-Way HDBaseT / HDMI Input Switch
Category: Blustream, Pro AV, Commercial Video Signal Distribution, Pro HDMI Switchers
UPC Code: 9340242003140
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number 6E-SW41HDBT Manufacturer Part Number SW41HDBT
Power Consumption 5.0000W
Network (RJ-45) Yes
Input Voltage 24V DC Power Source DC Power
Package Contents 1 x 24V/5A DC Power Supply, 1 x IR Control Cable - 3.5mm - 3.5mm, 1 x IR receiver, 1 x Mounting Kit, 1 x Quick reference guide, 1 x RS-232 Control Cable, 1 x SW41HDBT
