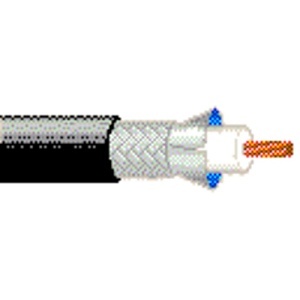

Belden 1865A 0101000 RG59/U Mini Coaxial Cable, 25 AWG Stranded Bare Copper, Duofoil Shield, PVC Jacket, 1000' Reel, Black
1865A 0101000 | 7B-1865A0101000
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
25AWG Stranded (19x37) .021" bare copper conductor, gas-injected foam HDPE insulation, Duofoil, tinned copper braid shield (95% coverage), PVC jacket.
Main Features
- 25AWG Stranded (19x37) bare copper conductor
- Gas-injected foam HDPE insulation
- Duofoil and tinned copper braid shield (95% coverage)
- 75Ohms Nominal Characteristic Impedance
- 82% Nominal Velocity of Propagation
- UL1666 Vertical Shaft Flammability rating
- Sub-miniature 59 RG Type
- 27lb Maximum Recommended Pulling Tension
- 1.5" Minimum Minor Axis Bend Radius
- Indoor - Riser Environmental Space
General Information
Name: Belden 1865A 0101000 RG59/U Mini Coaxial Cable, 25 AWG Stranded Bare Copper, Duofoil Shield, PVC Jacket, 1000' Reel, Black
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-1865A0101000 Brand Name Belden Manufacturer Part Number 1865A 0101000 Package Type Reel/Spool
American Wire Gauge 25AWG Cable Rating Riser Conductor Count 1 Conductor Material Bare Copper Shielding Yes
Operating Temperature (T-T) -30-75°C
Cable Length 1000.00' Color Black Insulation Material PE, PO, PP Jacket Material PVC
Length 1000.00'
Limited Warranty 10-Year
Indoor/Outdoor Indoor
