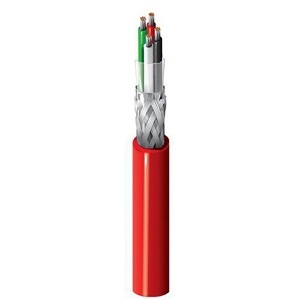

Belden 83654 0021000 4-Conductor 18 AWG High Temp Cable, FEP Insulation, Braid Shield, CMP, 1000', Red
83654 0021000
|7B-836540021
Shop All Belden
Belden 83654 0021000 4-Conductor 18 AWG High Temp Cable, FEP Insulation, Braid Shield, CMP, 1000', Red
83654 0021000 | 7B-836540021
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
High temperature electronic, 4-Conductor 18AWG (19x30) tinned copper, FEP insulation, overall beldfoil+tinned copper braid(85%) shield, FEP outer jacket, CMP.
Main Features
- Extra Low Capacitance for enhanced reach and data transmission
- Large range of design
- LSZH cables offer the same unsurpassed quality and reliability as our Classics series
- LSZH materials are non toxic as compared to PVC
- These products meets the REACH and RoHS compliance
- Enhanced resistance to fire with rating up to CPR B2ca as per EN50575
- Using biodegradable packaging material
General Information
Name: Belden 83654 0021000 4-Conductor 18 AWG High Temp Cable, FEP Insulation, Braid Shield, CMP, 1000', Red
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-836540021 Application/Usage ...); low voltage control (24v, …); line level audio; voice communications; panel wiring, 0-10v, extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma Brand Name Belden Country of Origin US Manufacturer Part Number 83654 0021000 Packaged Quantity 305
American Wire Gauge 18AWG Cable Rating Plenum Conductor Count 4 Conductor Material Tinned Copper Number of Conductors 4 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -70-200°C
Cable Length 1000.00' Color Red Insulation Material FEP Jacket Material FEP
Length 1000.00'
Limited Warranty 10-Year
Environmental Certification CA Prop 65, China RoHS II (GB/T 26572-2011), CMP, CPR Euroclass - ECA, EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), EU Directive 2015/863/EU (RoHS 2 amendment), FT6, IEC 60332-1-2, NFPA 262 (UL 910), REACH, UKCA Mark Indoor/Outdoor Indoor, Outdoor
