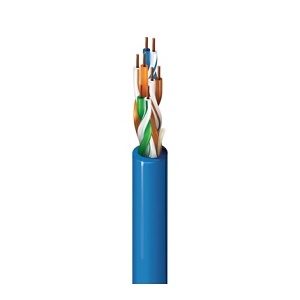

Belden RIPPU D15A1000 RemoteIP Cable, 4-Pair 22 AWG U/UTP, CMP Plenum, Flamarrest PVC-LS Jacket, Blue, Reel-in-Box, 1000'
RIPPU D15A1000
|7B-RIPPUD15A1000
Shop All Belden
Belden RIPPU D15A1000 RemoteIP Cable, 4-Pair 22 AWG U/UTP, CMP Plenum, Flamarrest PVC-LS Jacket, Blue, Reel-in-Box, 1000'
RIPPU D15A1000 | 7B-RIPPUD15A1000
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
RemoteIP Cable, 4 Pair, 22 AWG Solid Bare Copper Conductors, U/UTP - Unshielded, Plenum-CMP, Flamarrest PVC-LS Jacket. Suitable applications include Premise Horizontal Cable, Ethernet up to 1GBASE-T, Surveillance, PoE , PoE , PoE, Category 6.
Main Features
- 4-pair 22 AWG solid bare copper conductors
- U/UTP - Unshielded twisted pair cable
- Plenum, Indoor
- PO FEP - Polyolefin Fluorinated Ethylene Propylene Insulation
- Flamarrest PVC - Polyvinyl Chloride Jacket
- 300 V (CMP) UL Voltage Rating
- NFPA 262 Plenum (UL 910), FT6
- ANSI/TIA-568.2-D Category 6
- IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
- CMP
General Information
Name: Belden RIPPU D15A1000 RemoteIP Cable, 4-Pair 22 AWG U/UTP, CMP Plenum, Flamarrest PVC-LS Jacket, Blue, Reel-in-Box, 1000'
Category: Belden, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-RIPPUD15A1000 Brand Name Belden Manufacturer Part Number RIPPU D15A1000 Packaged Quantity 1000 Product Line RIPPU
American Wire Gauge 22AWG Cable Rating Plenum Cable Type Category 6 Conductor Count 8 Conductor Material Bare Copper Jacket Material PVC (Polyvinyl Chloride) Jacket Type Plenum Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid
Operating Temperature (T-T) -20-75°C Storage Temperature (T-T) -20-75°C
Cable Length 1000' Color Blue Insulation Material FEP, PO Package Type Reel-in-a-Box
Maximum Operating Voltage 300 V
Length 1000'
Certifications & Standards EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), EU Directive 2015/863/EU (RoHS 2 amendment), REACH, WEEE Country of Origin MX Indoor/Outdoor Indoor
