SoundTube IPD-SM52-EZ-WX-WH 5.25" Speaker, IP-Addressable, Dante-Enabled, Weather-Resistant, White
IPD-SM52-EZ-WX-WH
|9W-IPDSM52WH
Shop All SoundTube
SoundTube IPD-SM52-EZ-WX-WH 5.25" Speaker, IP-Addressable, Dante-Enabled, Weather-Resistant, White
IPD-SM52-EZ-WX-WH | 9W-IPDSM52WH
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

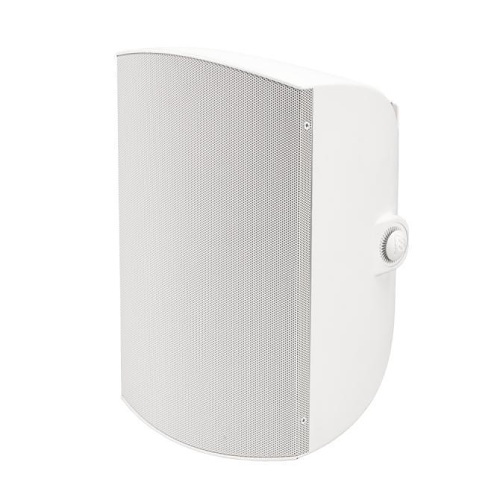

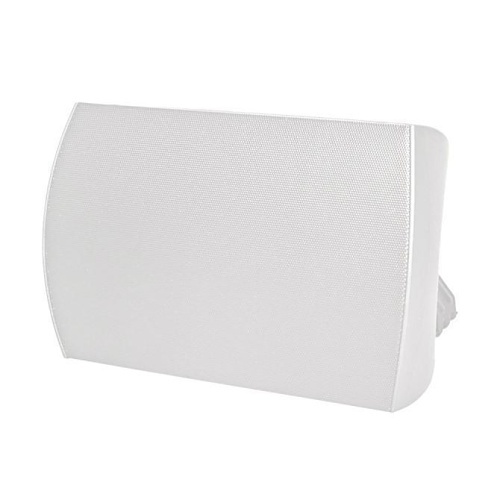

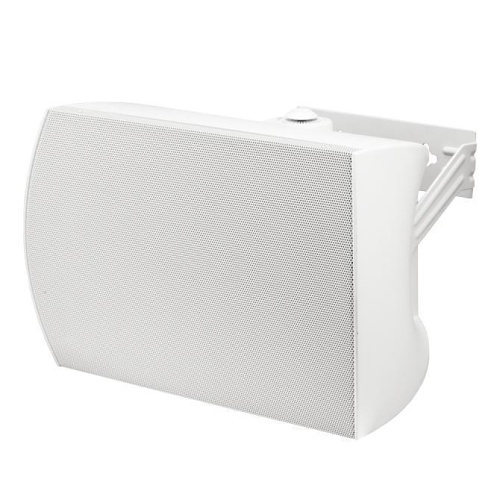

The IPD-SM52-EZ-WX is a Dante-enabled, weather resistant, digital end-point solution in a surface-mount loud speaker. This speaker includes a 40W PoE amplifier for simplified installation and set up. Driver components consists of one 5.25" polypropylene woofer and one 1.0" so' dome tweeter in a ported enclosure. The included pre-mountable surface-mount bracket allows for quick and easy installation and the powder-coated aluminum grille keep the speaker looking good in most environments. The system is UL 60065 approved. IP-Rating - IP65. Included accessories - Safety cable, wall mount bracket, conduit connector, and port plug. If used outdoors, port plugs must be installed to ensure protection from moisture.
Main Features
- STNet IP-addressable,self-powered (PoE) speaker
- Dante and AES67 I/O for interconnectivity with Dante and AES67-enabled audio systems
- BroadBeam Ring delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker
- One 5.25" (133mm) polypropylene woofer and one 1" (25.4mm) so' dome tweeter
- Fast connection of power,audio,and control functions via one CAT5 or CAT6 cable
- 40W PoE provided by SoundTube STNet Switch- also works with standard PoE+ and PoE switches
- Provides report-back on any problems via SoundTube software
- Aluminum grille with powder-coat finish
- Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications
- High-quality black or white paint finish
General Information
Name: SoundTube IPD-SM52-EZ-WX-WH 5.25" Speaker, IP-Addressable, Dante-Enabled, Weather-Resistant, White
Category: SoundTube, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 752830435186
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number 9W-IPDSM52WH Brand Name SoundTube Manufacturer Part Number IPD-SM52-EZ-WX-WH Package Type Box Packaged Quantity 1 Product Type Network Speaker
Maximum Frequency Response 20kHz Minimum Frequency Response 80Hz
Color White Depth 6.63" Width 7.50"
Power Source AC Power
Mount Type Surface Mount
Environmental Certification UL Environmentally Friendly Yes
