Product Overview

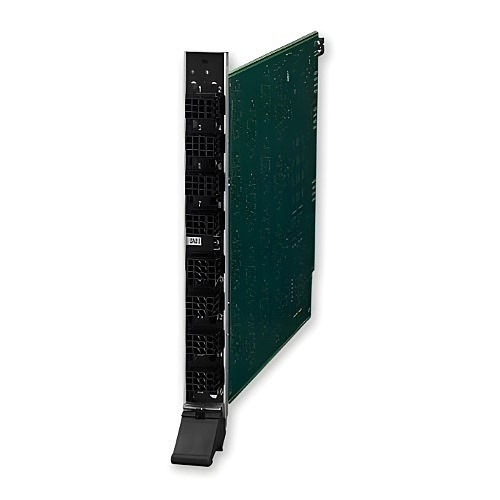

The DGX-AIE is an audio insert / extract board for the Enova DGX 8, 16, 32 and Enova DGX 64. The board provides insert or extract access to the first 16 video input or output positions. The Enova DGX 8, 16 and Enova DGX 32 enclosures both support one audio insert/extract board on the input side and one on the output side. The Enova DGX 64 supports 4 audio insert / extract boards on the input side and four on the output side. The audio insert/extract board simplifies system design by allowing audio from a source located near the Enova DGX to be plugged directly into the system. This can dramatically reduce the overall cost of the system by eliminating the need for additional Transmitters or Receivers. Extract embedded audio and send to a separate audio system to be distributed throughout an environment.
Main Features
- De-embed Audio - Breakaway embedded audio from Enova DGX inputs and send to a separate audio system to distribute throughout an environment
- Embed Audio - Insert local analog audio into pre-switched digital video paths or post switched digital audio paths depending on audio insert/extract board location
- Individually Configurable - Each audio access point can be individually configured for insertion or extraction functionality
- Hot Swappable - Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
General Information
Specifications
-
ADI Part Number AI-FG1058705 Brand Name AMX by Harman Manufacturer Harman International Industries, Inc Manufacturer Part Number FG1058-705-FX Product Line Enova Product Model DGX-AIE Product Name Enova DGX Audio Insert / Extract Board Product Type Matrix Switcher Audio Insert/Extract Board
-
Number of Channels 16
-
Number of Inputs 8 Number of Outputs 8
-
Application/Usage Matrix Switcher
-
Compatibility AMX Matrix Switchers: - Enova DGX 8, 16, 32
- Enova DGX 6
Country of Origin US
