Product Overview

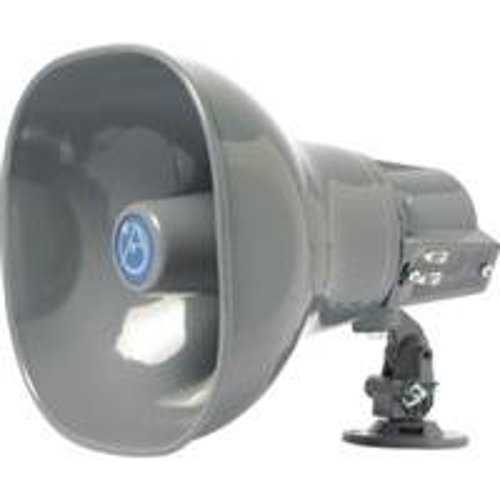

The 8-ohm Model AP-15 is a double re-entrant loudspeakers which deliver 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.
The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.
The trademarked squared-bell design signifies Atlas Sound quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.
AP Series loudspeakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.
The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.
The trademarked squared-bell design signifies Atlas Sound quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.
AP Series loudspeakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.
Specifications
ADI Part Number AT-AP15 Brand Name AtlasIED Manufacturer AtlasIED Manufacturer Part Number AP15 Product Line Horns Product Model AP-15 Product Name Horn Loudspeaker 15W @ 8?, Horn Loudspeaker 15W @ 8? Product Series AP Product Type Speaker
Application/Usage Indoor/Outdoor Impedance 8 ohms Material ABS, Metal Sensitivity 120dB
Maximum Frequency Response 14 kHz Minimum Frequency Response 400Hz RMS Output Power 15W
NDAA Compliant Yes TAA Compliant Yes
Sound Emission 120 dB
Color Gray Depth 9.31" Durability Environment Resistant Form Factor Strap Mount Height 11" Weight 3.50lb Width 7.9"
Mount Type Strap Mount
Limited Warranty 60-Month
Country of Origin US Features High-Efficiency Driver, Superior Intelligibility Indoor/Outdoor Outdoor Package Contents - Horn Loudspeaker 15W @ 8?
- Mounting Bracket
- Horn Loudspeaker 15W @ 8?
- Mounting Bracket
