Product Overview
Integration: The i4 module allows up to 12 i4 Series or compatible i 3 Series smoke detector models to be integrated into a fire alarm panel using only 2 to 3 zones: a smoke zone, a CO zone and an optional trouble zone. Detectors sound Temp 3 for smoke and Temp 4 for CO events. The i4 module can be used to alarm all sounders in compatible detectors for smoke and CO events. When one detector detects smoke or CO and goes into alarm, all connected detectors alarm, offering the highest level of warning to the homeowner.
Installation ease: The i4 Series Interface Module mounts to a 411/16-inch square back box for quick and easy installation. Terminal blocks with durable SEMS screws ensure a reliable connection. It also has pre-drilled holes for easy mounting inside a metal enclosure.
Intelligence: The i4 Interface Module allows i4 and compatible i3 smoke detector models (2WTA-B and 4WTA-B) to communicate with any listed fire alarm control panel capable of utilizing this module.
Instant inspection: The i4 Interface Module provides LED status indication for the loop, displaying normal operation, loop wiring fault, smoke events, smoke maintenance (2-wire only), CO events, and CO maintenance/end-of-life.
Main Features
- Single device for CO and smoke detection that uses less wiring and fewer junction boxes
- Compatible with a wide range of control panels with the use of the required i4 Interface Module.
- Sends distinct smoke and CO signals to the panel
- Sounds Temporal 3 for smoke and Temporal 4 for CO
- Built-in 85dB sounder
- LEDs display both CO and smoke status
- External IR LED provides extended range sensitivity testing
- Versatile mounting allows for wall or ceiling placement
- Easily replaceable electrochemical CO cell with 10-year end-of-life timer that signals the panel and chirps to alert the homeowner
- RealTest® enables functional test using canned CO
- Drift compensation and smoothing algorithms provide false alarm immunity
- Compatible with SENS-RDR sensitivity tester
- Full agency compliance with UL 268 and UL 2075
General Information

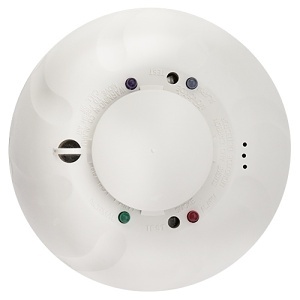

Name : System Sensor COSMO-2W i4 Series, 12/24V, 2-Wire, System-Connected, Combination Carbon Monoxide/Smoke Detector with RealTest Technology , System Sensor
Category : Smoke & CO Detectors
UPC Code : 783863044373
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : BK-COSMO2W
Brand Name : System Sensor
Manufacturer : Honeywell International, Inc
Manufacturer Part Number : COSMO2W
Product Line : Conventional Detection
Product Model : COSMO-2W
Product Name : i4 Series Combination CO/Photoelectric Smoke Detector
Product Series : i4
Product Type : Gas/Smoke Detector
Weight (Approximate) (g) : 260.816
Technical Information
Detectable Gas : Carbon Monoxide
Detectable Medium : Gas
Sensing Technology : Electrochemical, Photoelectric
Sensor Type : Photoelectric
Controls/Indicators
Status Indicators : Alarm, LED
Physical Characteristics
Depth : 2.5"
Depth (mm) : 63.5
Diameter (mm) : 139.7
Form Factor : Ceiling Mount, Wall Mount
Weight (Approximate) : 9.20 oz
Power Description
Input Voltage : 35 V DC
Input Voltage (V DC) : 35
Product Information
Diameter : 5.5"
