On-Q ENP1705NAV1 17" Dual-Purpose Media Enclosure with 5" Mounting Plate, Wall-Mounting

ENP1705NAV1 | H4-ENP1705NA

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

The On-Q ENP1705NAV1 17" Dual-Purpose In-Wall Enclosure is designed to provide a sleek and efficient solution for storing structured wiring and AV components. Constructed with Wi-Fi transparent material, it supports the management of wireless devices and AV components at point-of-use locations, such as directly behind a TV or in media centers. This feature ensures uninterrupted connectivity for devices like streaming boxes or smart home components. The enclosure is perfect for structured wiring needs, providing space for networking equipment, access points, switches, and more. Compatible with a wide range of devices, including the Samsung One Connect Box, Apple TV, Roku, Amazon Fire TV, and network switches, the ENP1705NAV1 offers flexible storage options for AV systems and smart home configurations. Its thoughtful design includes a 5" elevated mounting plate, split cover, trim ring, and drywall clips, making it suitable for both new construction and retrofit installations. The enclosure not only offers organization and protection for your technology but also enhances the functionality and aesthetics of your home or office setup.

Main Features

Replacement trim ring and cover
Can be placed behind most TV wall-mounts including SANUS premium TV mounts
Compatible with devices like the Samsung One Connect Box, Apple TV, Roku, Amazon Fire TV, 3rd party structured wiring components and more
Comes with removable mounting plate that features 1.5-in of elevation to accommodate larger devices and frees up space in the enclosure
Split cover is low profile and designed to snap into place. Split design supports removal and access to components even if partially covered

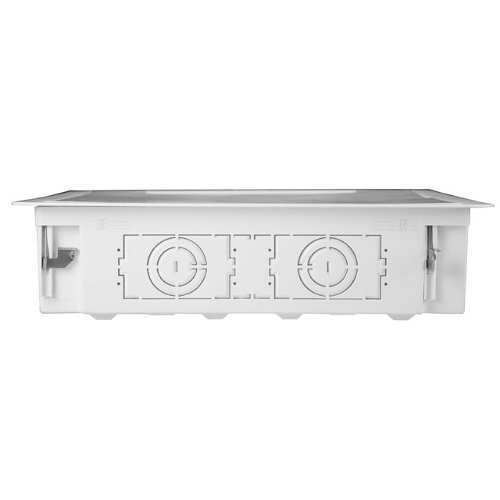

Knockout configurations support conduit and in-wall wired connections, while a cable pass through on cover allows for outside cable connections
Features (2) AC knockouts to accommodate a single gang junction box to power devices in enclosure
Universal mounting grid maximizes compatibility with 3rd party devices without additional mounting brackets

General Information

Name: On-Q ENP1705NAV1 17" Dual-Purpose Media Enclosure with 5" Mounting Plate, Wall-Mounting

Category: On-Q by Legrand, Data Comm & Networking, Racks & Enclosures, Structured Wiring Enclosures

UPC Code: 804428434153

Country of Origin: United States. Country of origin is subject to change.

Specifications

: ADI Part Number H4-ENP1705NA Brand Name On-Q by Legrand Manufacturer Legrand Group Manufacturer Part Number ENP1705-NA-V1 Product Model ENP1705NAV1 Product Name 17-in Dual-Purpose In-Wall Enclosure with 5-in Mounting Plate Product Type Mounting Box

: Material ABS Number of Gangs 1

: Color White Depth 3.88" Height 17.02" Size 17" Width 14.37"

: Limited Warranty 1-Year

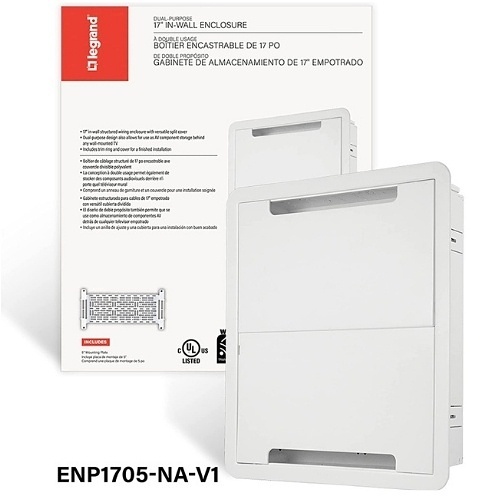

: Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Package Contents

17-in Dual-Purpose In-Wall Enclosure with 5-in Mounting Plate

5-in elevated mounting plate

Cover

Trim ring and drywall clips
