Farenhyt ECS-125W Intelligent 125W Amplifier, Red

ECS-125W

|

I2-ECS125W

Sign In for Dealer Pricing

New to ADI?Become a Customer

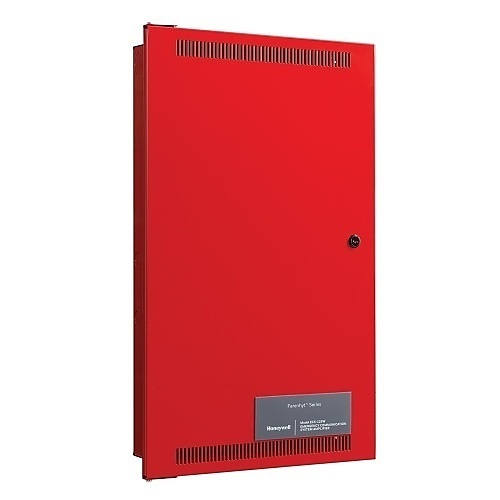

Image of I2-ECS125W
Shop all Honeywell Farenhyt Series

Farenhyt ECS-125W Intelligent 125W Amplifier, Red

ECS-125W | I2-ECS125W

Please sign in to view pricing, availability, and to add to cart.

Overview
Specifications
Documents

Product Overview

The ECS-125W is an amplifier compatible with the Farenhyt Emergency Communication System. The ECS-125W is used to amplify audio messages for distribution throughout entire facilities. The ECS-125W is designed as a self-contained distributed amplifier, it can be conveniently located near the area of protection to reduce wiring demands. Each ECS125W is capable of producing 125W of audio power. Up to eight ECS-125W amplifiers can be used on the Emergency Communication System. The ECS-125W has its own power supply with battery backup and includes four speaker circuits which can be expanded to eight speaker circuits when used with the optional ECS-CE4. The ECS-125W is fully supervised by the main panel to identify the trouble conditions.

Main Features

  • SBUS addressable, up to eight ECS-125Ws per system for a total of 1000W
  • ECS-125W uses an easy to install wire harness to connect the ECS-CE4 audio circuit expander
  • Each ECS-125W is supervised and has four onboard audio circuits expandable to eight for a system total of 64 audio circuits
  • Two-wires for the voice bus and four-wires for the SBUS connections
  • The ECS-125W has it’s own power supply and backup battery
  • Can be mounted up to 6000' away from ECS-Series panel
  • 120V AC or 240V AC operation

General Information

Name: Farenhyt ECS-125W Intelligent 125W Amplifier, Red
Category: Honeywell Farenhyt Series, Fire, Fire Voice Evacuation Systems
UPC Code: 783196013428
Country of Origin: United States. Country of origin is subject to change.
