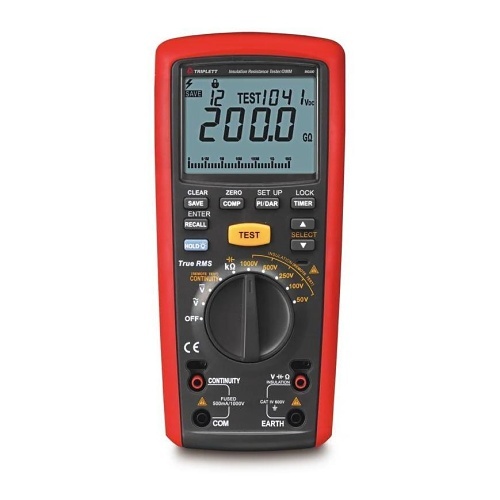

Image of IU-MG500
Shop all Triplett

Triplett MG500 Insulation Resistance Tester

MG500|IU-MG500
Shop all Triplett

Triplett MG500 Insulation Resistance Tester

MG500|IU-MG500
Key Features
  • Capable of measuring insulation resistance up to 200Gohm, ensuring thorough insulation testing
  • Supports five test voltages (50V, 100V, 250V, 500V, and 1000V) to suit various testing scenarios
  • Features PI and DAR measurements for advanced insulation analysis
Key Features
  • Capable of measuring insulation resistance up to 200Gohm, ensuring thorough insulation testing
  • Supports five test voltages (50V, 100V, 250V, 500V, and 1000V) to suit various testing scenarios
  • Features PI and DAR measurements for advanced insulation analysis

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Capable of measuring insulation resistance up to 200Gohm, ensuring thorough insulation testing
  • Supports five test voltages (50V, 100V, 250V, 500V, and 1000V) to suit various testing scenarios
  • Features PI and DAR measurements for advanced insulation analysis
Triplett

Triplett MG500 Insulation Resistance Tester

MG500 | IU-MG500

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The Triplett Model MG500 Insulation Tester is a comprehensive megohm meter (megohmmeter) designed to measure insulation resistance up to 200Gohm. It offers a wide range of testing capabilities, including five test voltages (50V, 100V, 250V, 500V, and 1000V), as well as measurements of AC/DC Voltage, Resistance, Capacitance, Frequency, and Continuity. The Triplett Model MG500 Insulation Tester is a versatile and reliable instrument that simplifies insulation testing and electrical measurements across various applications. It offers advanced features and a complete set of accessories to meet your testing needs with accuracy and convenience.

Main Features

  • Capable of measuring insulation resistance up to 200Gohm, ensuring thorough insulation testing
  • Supports five test voltages (50V, 100V, 250V, 500V, and 1000V) to suit various testing scenarios
  • Features PI and DAR measurements for advanced insulation analysis
  • Provides a lock power function for hands-free and stable testing
  • Includes a timed test function with settings from 1 to 10 minutes in 1-minute increments
  • ETL Listing ensures product safety and compliance with industry standards
  • Offers a comparison mode to quickly determine if test results meet the specified criteria
  • Allows for leakage current measurement to assess insulation integrity
  • Performs a wide range of electrical measurements for comprehensive testing
  • The insulation tester includes test leads, test probes, a remote control probe, alligator clips, (6) AA batteries, and a durable carrying case

General Information

Name: Triplett MG500 Insulation Resistance Tester
Category: Triplett, Tools & Hardware, Electric Power Testing Tools, Battery Testers
UPC Code: 614395005047
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
