LifeSafety Power FPO150-D8PE1 FlexPower Power Limited Offline Switchmode Power Supply-Battery Charger System, 150W, 8-Output Power Management, E1 Locking Enclosure
TP3107|J7-FPO150D81
LifeSafety Power FPO150-D8PE1 FlexPower Power Limited Offline Switchmode Power Supply-Battery Charger System, 150W, 8-Output Power Management, E1 Locking Enclosure
TP3107|J7-FPO150D81
Key Features
- SureCharge Microprocessor controlled battery charging
- PowerCom Power supply programming / monitoring software
- VSelect Installer selectable output voltage
Key Features
- SureCharge Microprocessor controlled battery charging
- PowerCom Power supply programming / monitoring software
- VSelect Installer selectable output voltage
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- SureCharge Microprocessor controlled battery charging
- PowerCom Power supply programming / monitoring software
- VSelect Installer selectable output voltage
LifeSafety Power
LifeSafety Power FPO150-D8PE1 FlexPower Power Limited Offline Switchmode Power Supply-Battery Charger System, 150W, 8-Output Power Management, E1 Locking Enclosure
TP3107 | J7-FPO150D81
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

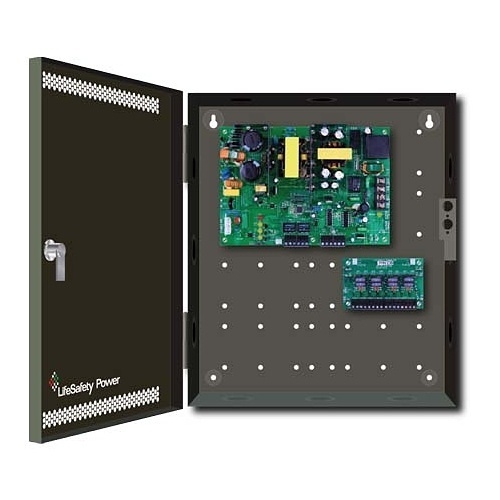

The FlexPower FPO150-D8E1 is an offline switchmode power supply-battery charger system specifically designed for multi-output general purpose power distribution, that may be used to provide distributed power for access, fire and the CCTV segments of the lifesafety industry. Providing for system power and multiple auxiliary power distribution outputs, the unit is user selectable for 12 or 24VDC and is configured in a painted, steel, locking enclosure with tamper switch and integral battery space. Each auxiliary output is programmable for continuous power output or switched (resettable) voltage output. Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and current power supply status.
Main Features
- SureCharge Microprocessor controlled battery charging
- PowerCom Power supply programming / monitoring software
- VSelect Installer selectable output voltage
- TruWatt Delivers twice the current at 12V than at 24V
- PwrHealth Intelligent battery charging and battery state monitoring
- FlexConnect Dual voltage bus / pre-wired accesory board interconnects
- Reliability Full fault protection / high efficiency / fiberglass pcb
- GreenSmart RoHS compliant, lead free, energy efficient design
- DataLink Network communication interface option
General Information
Name: LifeSafety Power FPO150-D8PE1 FlexPower Power Limited Offline Switchmode Power Supply-Battery Charger System, 150W, 8-Output Power Management, E1 Locking Enclosure
Category: LifeSafety Power, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers, Power Supplies
UPC Code: 811711021013
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number J7-FPO150D81 Brand Name LifeSafety Power Manufacturer Part Number FPO150-D8PE1
-
Country of Origin US
