Key Features
What's Included
- QuickFit; Improved components reduce the housing depth by up to 20 percent compared to previous Z-Wave models and eliminated the need for heat tabs
- SimpleWire; Auto line-load sensing terminals support fast installation by detecting line and load wires and configuring the switch accordingly
- Dual ground ports, which are offset to avoid switch box mounting screws, support daisy-chaining in multi-switch setups
Key Features
What's Included
- QuickFit; Improved components reduce the housing depth by up to 20 percent compared to previous Z-Wave models and eliminated the need for heat tabs
- SimpleWire; Auto line-load sensing terminals support fast installation by detecting line and load wires and configuring the switch accordingly
- Dual ground ports, which are offset to avoid switch box mounting screws, support daisy-chaining in multi-switch setups
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- QuickFit; Improved components reduce the housing depth by up to 20 percent compared to previous Z-Wave models and eliminated the need for heat tabs
- SimpleWire; Auto line-load sensing terminals support fast installation by detecting line and load wires and configuring the switch accordingly
- Dual ground ports, which are offset to avoid switch box mounting screws, support daisy-chaining in multi-switch setups

Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

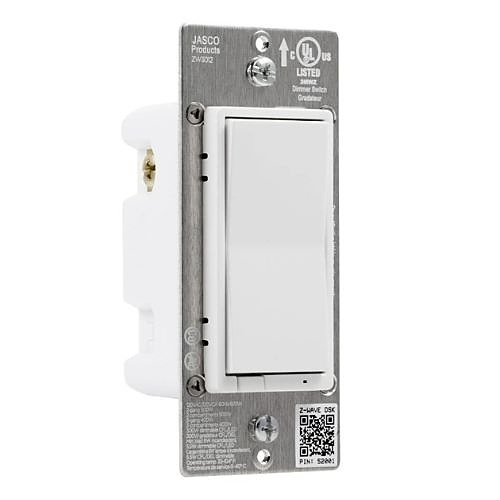

The Jasco 56590 Z-Wave In-Wall Smart Dimmer offers a sleek design with QuickFit technology, reducing housing depth by 20% and removing the need for heat tabs. Its SimpleWire feature automatically detects line and load wires for easy setup. Dual ground ports are designed for daisy-chaining in multi-switch configurations. Compatible with Google and Alexa (hub required), it supports single-pole use or multiple add-on switches. Suitable for most dimmable bulbs, it allows manual or remote dimming and on/off control. The blue LED has four modes for customizable lighting. This smart dimmer supports inclusion in multiple groups and scenes and enables firmware updates over the air. Upgrade your lighting control effortlessly with this versatile device today!
Main Features
- QuickFit; Improved components reduce the housing depth by up to 20 percent compared to previous Z-Wave models and eliminated the need for heat tabs
- SimpleWire; Auto line-load sensing terminals support fast installation by detecting line and load wires and configuring the switch accordingly
- Dual ground ports, which are offset to avoid switch box mounting screws, support daisy-chaining in multi-switch setups
- Works with Google and Alexa (requires compatible hub)
- May be used in single pole installation or with up to four Jasco 46560 Add-on switches in 3, 4, 5 or 6-way wiring configurations
- Works with most dimmable LED, CFL, halogen and all incandescent bulbs
- Turn ON/OFF and control the brightness level of the connected lighting manually or via Z-Wave hub or controller
- Blue LED has 4 adjustable settings; guide light, status light, always OFF, or always ON (configurable manually and through Z-Wave)
- Can be Included in multiple Groups and Scenes
- Utilizes the Z-Wave Firmware Update Meta Data command class for standardized firmware updates Over the Air
General Information
Name: Jasco 56590 Z-Wave In-Wall Smart Dimmer
Category: Jasco, Smart Home, Smart Dimmers & Light Switches
UPC Code: 308785659056
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number JS-56590 Brand Name Jasco Manufacturer Jasco Products Company Manufacturer Part Number 56590 Product Line Z-Wave Product Model 56590 Product Name Z-Wave In-Wall No Neutral Smart Dimmer Product Type Wireless Dimmer
-
Controllable Function Light Control Virtual Assistant Supported Amazon Alexa, Google Assistant
-
Application/Usage Indoor Depth 1.1" Height 4.1" Width 1.8"
-
Input Voltage 120V AC Maximum Frequency 60 Hz Power Rating 600W
-
Limited Warranty 5-Year
-
Country of Origin CN Features LED Indicator Package Contents Z-Wave In-Wall No Neutral Smart Dimmer White/Light Almond Paddles
