Product Overview
100 Amp, 125/250 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Connector, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Orange LEV Series IEC 60309 Pin and Sleeve Devices are designed to simplify your installation, endure the harshest environments and outlast the competition; Improved speed of assembly with threaded housings that have less screws for reduced installation time Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68 Best in class 5-year limited warranty Leviton Pin and Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
Main Features
- 100 Amp, 125/250 Volt 3-Phase Connector
- Industrial Grade, IP66/IP67/IP68/IP69K Rated
- Watertight Design for Harsh Environments
- Threaded Housings for Quick Installation
- UL Listed Components for Safety
- 5-Year Limited Warranty
- UL Listed Components
General Information

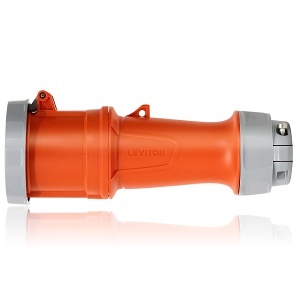

Name: Leviton 4100C12WLEV 100A Pin and Sleeve Connector, Orange
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs, Power Connectors
UPC Code: 78477320433
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-4100C12LV Brand Name Leviton Country of Origin MX Manufacturer Part Number 4100C12WLEV Product Name LEV Series IEC Pin and Sleeve Connector Product Type Connector
American Wire Gauge 10AWG, 4AWG
CE Marking Yes CSA Listed Yes Ingress Protection Rating IP66, IP67, IP68, IP69K RoHS Compliant Not Compliant
Operating Temperature (T-T) -35C to +66C
Color Orange Material Stainless Steel
Voltage Rating 125V AC, 250V AC, 600V
Limited Warranty 5-Year
