Securitron PDB-8F2 Power Distribution Board with (8) Glass Fuse
PDB-8F2 | SN-PDB8F2
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

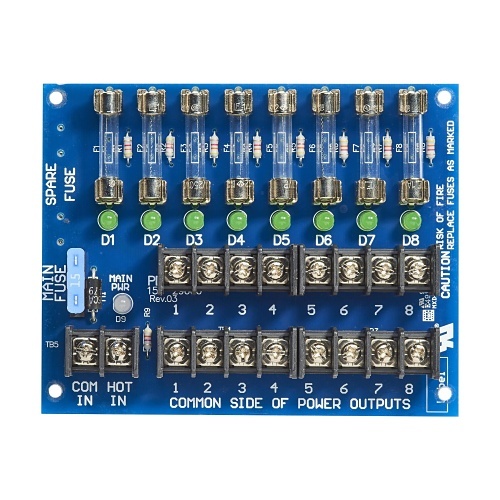

The Securitron PDB-8F2 is a power distribution board with eight fused outputs at 2 Amp each. The board splits the primary AC or DC output from a power supply into multiple outputs of the same voltage type to separate equipment onto individual circuits.
Main Features
- Converts a single DC Input into 4 or 8 Class 2 rated outputs for “C” denoted models
- Class 1 wiring is required for “F” denoted models
- 9-28 VDC Operation
- Reverse polarity protected
- Available with glass fuses or PTC protection
- Output LED's indicate condition
- Form C Contacts Indicates Trigger Status
- UL Listed Sub Assembly for Access Control and Burglar Alarm Systems
General Information
Name: Securitron PDB-8F2 Power Distribution Board with (8) Glass Fuse
Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supply Boards
UPC Code: 784607041498
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SN-PDB8F2 Brand Name Securitron by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number PDB-8F2 Product Model PDB-8F2 Product Name Securitron PDB-8F2 Power Distribution Board Product Type Power Supply Sector Access Control
Output Voltage 12V, 24V
Output Current 10A Voltage Rating 24V
Amperage 10A
Limited Warranty Lifetime
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes
