Product Overview

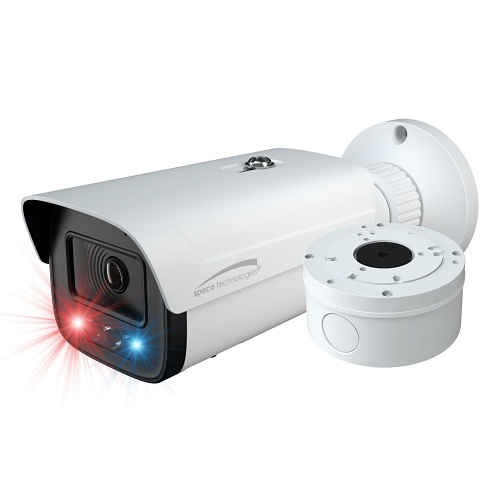

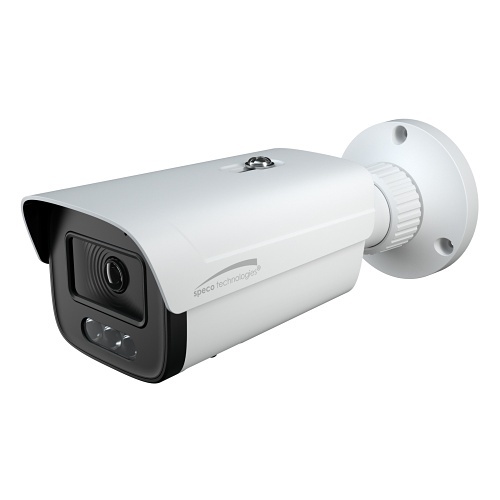

4MP AI IP Bullet camera with Digital Deterrent and a 2.8mm fixed lens.
General Information
Name : Speco O4BDD2 4MP AI Bullet IP Camera, 2.8mm Lens , Speco Technologies
Category : Bullet Cameras
UPC Code : 030519041386
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SO-O4BDD2
Brand Name : Speco Technologies
Manufacturer : Speco Technologies
Manufacturer Part Number : O4BDD2
NDAA Compliant : Yes
Packaged Quantity : 10
Product Line : Flexible Intensifier
Product Model : O4BDD2
Product Name : O4BDD2
Product Series : Flexible Intensifier
Weight (Approximate) (g) : 680
Technical Information
Effective Camera Resolution : 4MP
Field of View : Horizontal: 111.3° Vertical: 78.9° Diagonal: 118.4°
HD Recording : Yes
Lens Mount Type : M12
Lens Type : Fixed
Maximum Aperture : F1.2
Maximum Focal Length (mm) : 2.8
Night Vision : Yes
Night Vision Type : IR
Number of IR LEDs : 2
Power Consumption (PoE) (W) : 7.5
Audio
Master (outer) Case Height (mm) : 305
Master (outer) Case Length (mm) : 700
Master (outer) Case Weight (g) : 12197
Master (outer) Case Width (mm) : 365
Shipping (Inner) Case Gross Weight (g) : 1115
Shipping (inner) Case Height (mm) : 350
Shipping (inner) Case Length (mm) : 143
Shipping (inner) Case Net Weight (g) : 1115
Shipping (inner) Case Width (mm) : 137
Shipping Weight (Approximate) (g) : 1115
Camera
Night Vision Distance (mm) : 50000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color, Monochrome
Maximum Video Resolution : 4MP
Minimum Illumination (lux) : 0
Number of Sensors : 1
Environmental Conditions
Maximum Operating Temperature : 140°F
Maximum Operating Temperature (°F) : 140
Minimum Operating Temperature : -22°F
Minimum Operating Temperature (°F) : -22
Operating Humidity : >95 % (non-condensing)
Storage Temperature (T-T) (°F) : -22 to 149
Exposure
Longest Shutter Speed : 1s
Minimum Illumination : 0.0009 lux
Shortest Shutter Speed : 1/100000 s
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8 mm
Lens Included : Yes
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : Gray
Depth (mm) : 86
Form Factor : Bullet
Package Type : Paper Box
Width (mm) : 219.9
Power Description
Input Voltage (V DC) : 12
Product Information
Length (mm) : 85.8
Mount Type : Ceiling Mount, Pole Mount, Wall Mount
Operating Temperature (T-T) (°F) : -22 to 140
Projection Lens
Minimum Focal Length (mm) : 2.8
Video
Horizontal Resolution : 2576
Maximum Frame Rate (fps) : 30
Miscellaneous
Environmental Certification : EC, EU RoHS, REACH, WEEE
Environmentally Friendly : Yes
Indoor/Outdoor : Indoor, Outdoor
Ingress Protection Rating : IP67

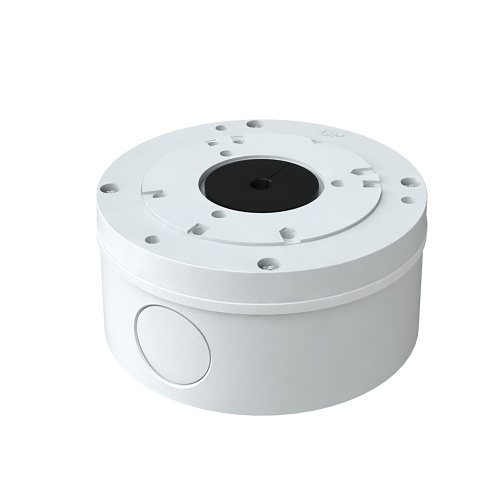

Package Contents : Camera, Screws, QSG, CD, Drill Template, Junction Box
