Speco O4P4N 4MP IP Outdoor Mini Dome IR Camera, 2.8mm Fixed Lens, White
O4P4N
|SO-O4P4N
Shop All Speco Technologies
Speco O4P4N 4MP IP Outdoor Mini Dome IR Camera, 2.8mm Fixed Lens, White
O4P4N | SO-O4P4N
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

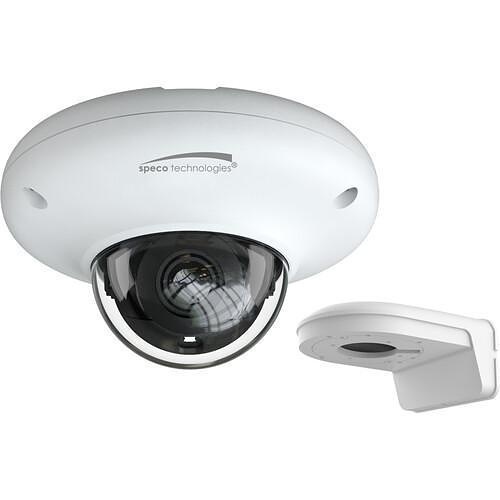

Securely monitor your surroundings with the O4P4N 4MP Network Mini Dome Camera from Speco Technologies. This unit uses a 1/3" progressive scan CMOS sensor to capture 2592 x 1520 resolution video at 30 fps. IR LEDs provide up to 65' of night vision. The camera features a 2.8mm fixed lens, a wide 100.4° horizontal angle of view, a built-in microphone, and a 3.5mm audio input. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. An onboard memory card slot supports microSD cards up to 128GB (available separately).
Specifications
ADI Part Number SO-O4P4N Brand Name Speco Technologies Manufacturer Part Number O4P4N Supported Network Protocols DHCP, IPv4, IPv6, NTP, PPPoE, RTSP, UDP
Application/Usage Commercial Security, Education, Retail, Warehouses Effective Camera Resolution 4MP Field of View Horizontal, Vertical Field of View (Horizontal) 100.4° Field of View (Vertical) 68° Maximum Frame Rate 30fps
Video Encoding H.264, H.265, MJPEG
Camera Type IP Camera Image Sensor Type Progressive Scan CMOS Night Vision Distance 65' Wide Dynamic Range Yes
Ingress Protection Rating IP67 NDAA Compliant Yes
Minimum Illumination 0.005lux
Focal Length 2.8mm
ADI Part Number Replaces SO-O3FDP9, SO-O4P4 Model Number Replaces O3FDP9, O4P4
Depth 4.33" Form Factor Dome Height 2.28" Width 4.33"
Maximum Resolution 2592 x 1520
Limited Warranty 5 Year
Country of Origin CN
