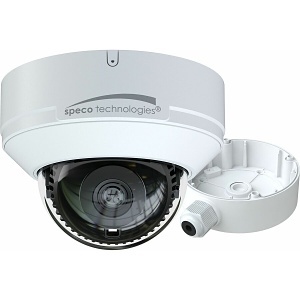

Speco O8D9 8MP (4K) IP Dome Camera with Advanced Analytics, NDAA Compliant, 2.8mm Fixed Lens, White
O8D9
|SO-O8D9
Shop All Speco Technologies
Speco O8D9 8MP (4K) IP Dome Camera with Advanced Analytics, NDAA Compliant, 2.8mm Fixed Lens, White
O8D9 | SO-O8D9
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Monitor an indoor or outdoor area with the white O8D9 8MP Network Dome Camera from Speco Technologies. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 4K UHD resolution video at 30 fps. IR LEDs provide up to 98' of night vision. The camera features a 2.8mm fixed lens that delivers a 106.9° horizontal field of view, a built-in microphone, and a 3.5mm audio input. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A memory card slot supports microSD cards up to 256GB (available separately). Compliance with ONVIF profiles G, S, and T enables interoperability with a wide range of surveillance devices. This NDAA-compliant camera is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
Specifications
ADI Part Number SO-O8D9 Brand Name Speco Technologies Manufacturer Speco Technologies Manufacturer Part Number O8D9 Packaged Quantity 12 Product Line AI line Product Model O8D9 Product Name O8D9 Product Series AI line Product Type Network Camera Supported Network Protocols DDNS, DHCP, FTP, HTTP, HTTPs, NTP, PPPoE, QoS, RTSP, SMTP, UDP, UPnP
Application/Usage Commercial Security, Education, Retail, Warehouses Connectivity Technology Wired Effective Camera Resolution 8MP Field of View Diagonal Field of View (Horizontal) 106.9° Field of View (Vertical) 56.9° Lens Mount Type M12 Lens Type Fixed Maximum Aperture f/1.2 Maximum Frame Rate 30fps Minimum Focal Length 2.8mm Night Vision Yes Night Vision Type IR Number of IR LEDs 3 Video Formats NTSC, PAL
Video Encoding H.264, H.265, MJPEG
Camera Type IP Camera Image Sensor Type Progressive Scan CMOS Night Vision Distance 98’ Wide Dynamic Range Yes
Ingress Protection Rating IP67 NDAA Compliant Yes
Maximum Video Resolution 8MP Number of Sensors 1
Maximum Operating Temperature 140°F Minimum Operating Temperature -22°F Operating Humidity 95% (Non-condensing)
Longest Shutter Speed 1s Minimum Illumination 0.02lux Shortest Shutter Speed 1/100000 s
Network (RJ-45) Yes
Focal Length 2.8mm Lens Included Yes Maximum Focal Length 2.8mm
Remote Management Yes
ADI Part Number Replaces SO-O8D8 Model Number Replaces O8D8
Color White Depth 5" Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant Form Factor Dome Height 3.5" Package Type Box Weight 1.43lb Width 5"
Input Voltage 12V DC
Diameter 4.7" Mount Type Ceiling Mount, Pole Mount, Wall Mount
Recording Formats 4K Storage Type Memory Card
Maximum Resolution 3840 x 2160
Limited Warranty 5-Year
Country of Origin CN Environmental Certification EC, EU RoHS, REACH, WEEE Environmentally Friendly Yes Features 3D Digital Noise Reduction, Back Light Compensation (BLC), Built-in IR LED, Built-in Microphone, Day/Night, Face Detection, Highlight Compensation (HLC), SD Card Local Storage, Vehicle Detection, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Indoor, Outdoor Package Contents Camera, Screws, QSG, CD, Drill Template, Junction Box
