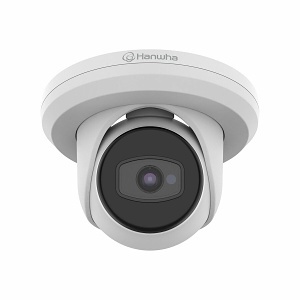

Hanwha ACE-8020R Wisenet Series 5MP Turret Camera with Day and Night Sensor and IP67, IK10 Protection, 3.6mm Fixed Focal Lens, White
ACE-8020R|SQ-ACE8020R
Hanwha ACE-8020R Wisenet Series 5MP Turret Camera with Day and Night Sensor and IP67, IK10 Protection, 3.6mm Fixed Focal Lens, White
ACE-8020R|SQ-ACE8020R
Key Features
- Maximum 5MP resolution, Up to 20 fps
- Day and Night
- IR viewable length: 20m
Key Features
- Maximum 5MP resolution, Up to 20 fps
- Day and Night
- IR viewable length: 20m
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Maximum 5MP resolution, Up to 20 fps
- Day and Night
- IR viewable length: 20m
Hanwha Vision
Hanwha ACE-8020R Wisenet Series 5MP Turret Camera with Day and Night Sensor and IP67, IK10 Protection, 3.6mm Fixed Focal Lens, White
ACE-8020R | SQ-ACE8020R
Please sign in to view pricing and availability and to add to cart.
Accessories
Power Conditioners
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Experience superior security with the Hanwha ACE-8020R Wisenet Series turret camera. This device delivers crisp 5MP resolution at up to 20 frames per second, ensuring clear, detailed footage. Equipped with reliable day and night functionality, it maintains visibility around the clock. The camera features a 3.6mm fixed lens and infrared capability extending up to 20 meters for effective low-light monitoring. Built to withstand harsh conditions, it boasts IP67 and IK10 ratings for dust, water, and impact resistance. Ideal for robust security setups, make this camera your go-to for trusted surveillance.
Main Features
- Maximum 5MP resolution, Up to 20 fps
- Day and Night
- IR viewable length: 20m
- Focal length: 3.6mm fixed focal
- IP67, IK10
General Information
Name: Hanwha ACE-8020R Wisenet Series 5MP Turret Camera with Day and Night Sensor and IP67, IK10 Protection, 3.6mm Fixed Focal Lens, White
Category: Hanwha Vision, Video Surveillance, HDoC Cameras, Turret Cameras
UPC Code: 8801089219381
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-ACE8020R Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number ACE-8020R Product Model ACE-8020R Product Name 5MP Analog HD Flateye Camera Product Series A Product Type Flateye Camera Weight 0.90 lb
-
Connectivity Technology Wired Effective Camera Resolution 5MP Field of View H: 83.9°, V: 63.4°, D: 104° Lens Type Fixed Focus Maximum Aperture f/1.6 Maximum Frame Rate 30 fps Minimum Focal Length 3.6mm Night Vision Yes Night Vision Type Infrared
-
Image Sensor Type CMOS Night Vision Distance 65.62 ft
-
Ingress Protection Rating IP67
-
Maximum Video Resolution 2592 x 1944
-
Maximum Operating Temperature 131°F Minimum Operating Temperature -22°F Operating Humidity 0-90% RH
-
Longest Shutter Speed 1/30 Second Shortest Shutter Speed 1/50,000 Second
-
Focal Length 3.6 mm Lens Included Yes Maximum Focal Length 3.6 mm
-
Remote Management Yes
-
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Flateye
-
Input Voltage 12V DC
-
Diameter 4.72" Mount Type Backbox Mount
-
Analog Video Signal Format AHD, CVBS, CVI, TVI Maximum Resolution 1280 x 720
-
Limited Warranty 5-Year
-
Country of Origin KR Features ,, 0.08Lux at F1.6(Color), 0Lux(B/W - IR LED on), 12v DC power, 3.6mm fixed focal lens FoV H - 94°/V - 54°, 5MP resolution at 30FPS, 4MP at CVI, Day and Night (ICR), DWDR, Easy installation (Plug and play), Coaxial control, IR distance 20m(65.6 ft), Multi-protocol compatible with AHD, TVI, CVI, CVBS, Transmission distance max.500m Impact Protection Rating IK10
