Product Overview

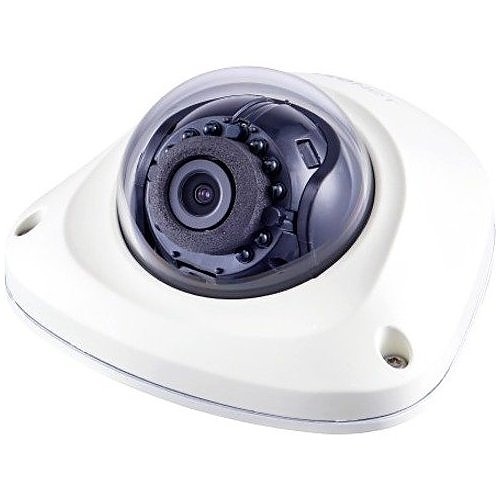

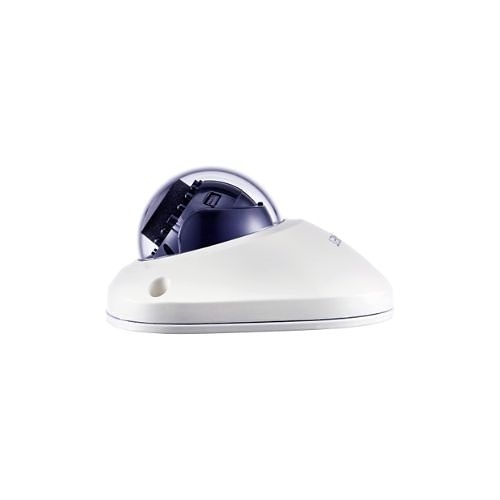

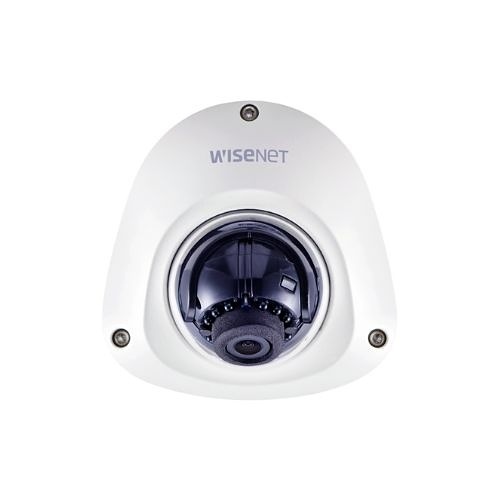

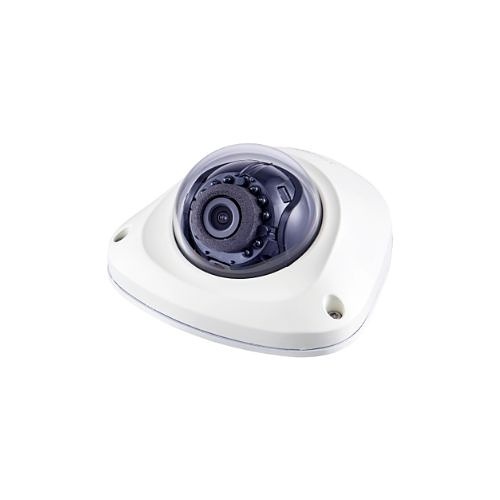

A series mini network outdoor vandal dome camera, 2MP @ 30fps, 3.6mm fixed focal lens (94.8°), triple codec H.265/H.264/MJPEG with Wisestream II, 120dB WDR, IR LEDs range 49', defocus detection, hallway View, one way audio and SD card, video analytics, CVBS, open platform, IP66, IK10, PoE
General Information
Name : Hanwha ANV-L6023R Series 2MP Vandal Flateye Dome IP Camera, 3.6mm Fixed Lens, White , Hanwha Vision
Category : Dome Cameras
UPC Code : 8801089212436
Country of Origin : Vietnam. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-ANVL6023R
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : ANV-L6023R
NDAA Compliant : Yes
Product Model : ANV-L6023R
Product Name : 2MP Vandal-Resistant Network IR Flateye Dome
Product Series : A
Product Type : Network Camera
Weight (Approximate) (g) : 295
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 2MP
Field of View : H: 94.8° / V: 49.3° / D: 114.3°
HD Recording : Yes
Lens Type : Fixed
Maximum Aperture : f/2.0
Maximum Focal Length (mm) : 3.6
Maximum Frame Rate : 30 fps
Night Vision : Yes
Night Vision Type : Infrared
Camera
Night Vision Distance : 49.21 ft
Night Vision Distance (mm) : 15000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 2000000
Maximum Video Resolution : 1600 x 1200
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -22°F (-30°C)
Minimum Operating Temperature (°F) : -22
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 1/5 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 3.6 mm
Lens Included : Yes
Maximum Focal Length : 3.6 mm
Network & Communication
Remote Management : Yes
Others
ADI Part Number Replaces : SQ-QNV6023R
Model Number Replaces : QNV-6023R
Physical Characteristics
Color : White
Durability : Vandal Resistant
Form Factor : Dome
Weight (Approximate) : 10.41 oz
Product Information
Mount Type : Desk Mount, Rack Mount, Wall Mount
Storage
Recording Formats : Full HD
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 30
Warranty
Limited Warranty : 3 Year
Miscellaneous
Features : Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Digital Noise Reduction, Gain Control, Motion detection, Privacy Masking, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
Ingress Protection Rating : IP66
