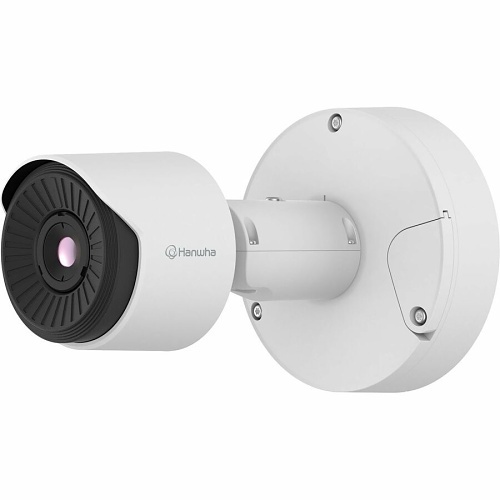

Hanwha TNO-C3012TRA T Series QVGA Radiometric AI Thermal Camera, 4.4mm Fixed Lens, IP66, IK10, White
TNO-C3012TRA|SQ-TC3012TRA
Hanwha TNO-C3012TRA T Series QVGA Radiometric AI Thermal Camera, 4.4mm Fixed Lens, IP66, IK10, White
TNO-C3012TRA|SQ-TC3012TRA
Key Features
What's Included
- AI based object classification (person, vehicle)
- High performance detector applied (17µm, NETD 30mK)
- QVGA resolution (384x288) with wide angle (FoV 90°)
Key Features
What's Included
- AI based object classification (person, vehicle)
- High performance detector applied (17µm, NETD 30mK)
- QVGA resolution (384x288) with wide angle (FoV 90°)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- AI based object classification (person, vehicle)
- High performance detector applied (17µm, NETD 30mK)
- QVGA resolution (384x288) with wide angle (FoV 90°)
Hanwha Vision
Hanwha TNO-C3012TRA T Series QVGA Radiometric AI Thermal Camera, 4.4mm Fixed Lens, IP66, IK10, White
TNO-C3012TRA | SQ-TC3012TRA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Hanwha TNO-C3012TRA T Series Thermal Camera offers AI-driven object classification, identifying persons and vehicles with precision. Equipped with a high-performance 17µm detector and NETD 30mK, it delivers clear QVGA resolution (384x288) and a wide 90° field of view. This model supports an extensive temperature monitoring range from -40° to 550°C (-40°F to 1,022°F). Designed compact and lightweight (Φ147 * 233.5mm, 1.7KG), it ensures easy installation. It also supports up to 8fps across all resolutions using H.265/H.264/MJPEG. Upgrade your surveillance with reliable thermal imaging technology today!
Main Features
- AI based object classification (person, vehicle)
- High performance detector applied (17µm, NETD 30mK)
- QVGA resolution (384x288) with wide angle (FoV 90°)
- Wide temperature monitoring range -40°~ 550°C (-40°F ~ 1,022°F)
- Smaller and light camera (Φ147 * 233.5mm, 1.7KG) for easy and simple installation
- Maximum 8fps @ all resolutions (H.265/H.264/MJPEG)
General Information
Name: Hanwha TNO-C3012TRA T Series QVGA Radiometric AI Thermal Camera, 4.4mm Fixed Lens, IP66, IK10, White
Category: Hanwha Vision, Video Surveillance, IP Cameras, Thermal Imaging Cameras
UPC Code: 8801089226709
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-TC3012TRA Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number TNOC3012TRA Product Model TNO-C3012TRA Product Name TNO-C3012TRA Radiometric AI Thermal Camera Product Series T Product Type Network Camera Weight 3.75lb
-
Connectivity Technology Wired Field of View H: 90° / V: 65.3° / D: 118.6°(iFoV: 3.9 mRad) Lens Type Fixed Maximum Aperture f/1 Maximum Frame Rate 8fps Video Formats H.264, H.265, MJPEG Video Resolution 768 x 576
-
Image Sensor Type Uncooled Microbolometer
-
Ingress Protection Rating IP66 TAA Compliant Yes
-
Maximum Video Resolution 1600 x 1200
-
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 0.95
-
Network (RJ-45) Yes
-
Lens Included Yes Maximum Thermal Focal Length 4.32mm
-
Remote Management Yes
-
Color White Durability Dustproof, Impact Resistant, Waterproof
-
Input Voltage 12V DC
-
Diameter 3.7" Mount Type Backbox Mount
-
Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Limited Warranty 5-Year
-
Environmental Certification RoHS Environmentally Friendly Yes Features Audio Detection, Digital Image Stabilization, Mirror, Motion Detection, Multi-view Stream, Privacy Masking, Sound Detection, Tampering Alarm, Temperature Sensor, Video Management System Impact Protection Rating IK10 Package Contents - 1 x TNO-C3012TRA Radiometric AI Thermal Camera
- 1 x Backbox
