Product Overview
AI based bi-spectrum camera detects each person individually with 4K resolution. Thermal video of bi-spectrum camera detects temperature change to prevent any possible accidents. Specifically, it informs the viewer of dangerous places to touch by checking thermal images of hot places that cannot be clearly distinguished by the naked eye.
General Information

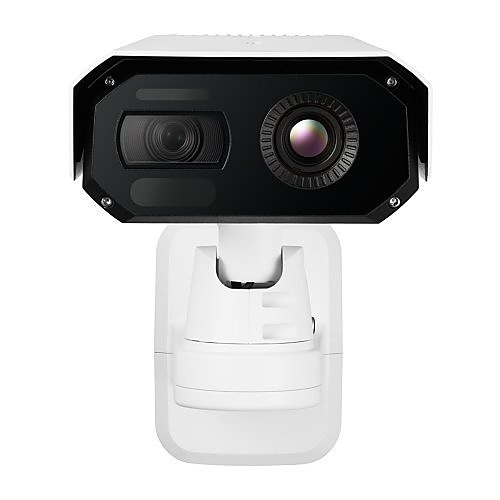

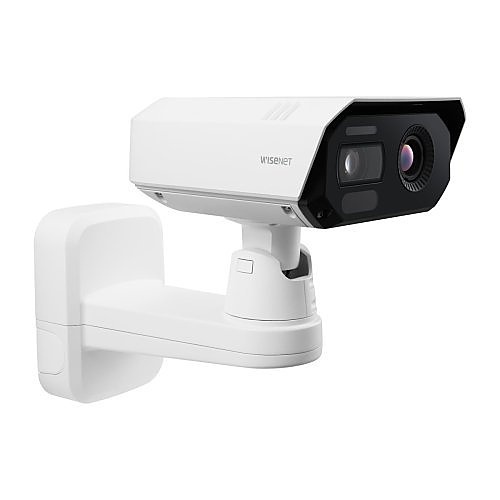

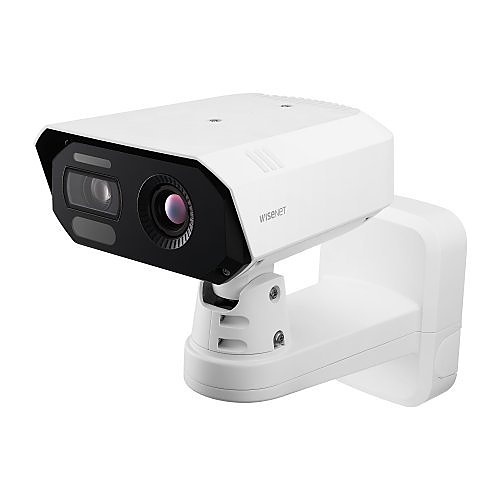

Name : Hanwha TNM-C4940TD/KEX Series 8MP Bi-Spectrum AI Thermal Multi-Sensor IP Camera, 9.1mm Fixed Thermal Lens, 4.4-9.3mm Motorized Varifocal Visible Lens, White, TAA Compliant , Hanwha Vision
Category : Thermal Imaging Cameras
UPC Code :
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-TMC494KEX
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : TNM-C4940TD/KEX
Product Model : TNM-C4940TD
Product Name : Bi-spectrum AI Thermal Camera
Product Series : T
Product Type : Network Camera
Weight (Approximate) (g) : 4530
Technical Information
Connectivity Technology : wired
Effective Camera Resolution : 8MP
Field of View : H: 50.0, V: 37.0, D: 63.8 / H:112.1°(Wide)~47.5°(Tele) / V:58.0°(Wide)~26.6°(Tele) / D:137.5°(Wide)~54.6°(Tele)
HD Recording : Yes
Lens Type : Fixed, Varifocal
Maximum Focal Length (mm) : 9.3
Maximum Frame Rate : 30 fps
Minimum Focal Length : 4.40 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 2.1x
Camera
Night Vision Distance : 98.43 ft
Night Vision Distance (mm) : 30000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Maximum Video Resolution : 3840 x 2160
Number of Sensors : 2
Thermal Image Sensor Type : Uncooled Microbolometer
Environmental Conditions
Maximum Operating Temperature : 140°F (60°C)
Maximum Operating Temperature (°F) : 140
Minimum Operating Temperature : -40°F (-40°C)
Minimum Operating Temperature (°F) : -40
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 1/5 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : yes
Lens
Focal Length : 4.4-9.3 mm
Lens Included : Yes
Maximum Focal Length : 9.30 mm
Maximum Thermal Focal Length : 0.36"
Maximum Thermal Focal Length (mm) : 9.1
Physical Characteristics
Color : white
Weight (Approximate) : 9.99 lb
Power Description
Input Voltage : 12V DC
Input Voltage (V DC) : 12
Product Information
Mount Type : Pole Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 4.4
Storage
Recording Formats : 4K
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 30
Thermal Video Resolution : 1280 x 960
Warranty
Limited Warranty : 3 year
Miscellaneous
Features : Alarm Triggering, Audio Compression, Face Detection, Human Detection, Motion detection, Privacy Masking, SD Card Local Storage, Vehicle Detection
Impact Protection Rating : IK10
Ingress Protection Rating : IP66, IP67
TAA Compliant : yes
