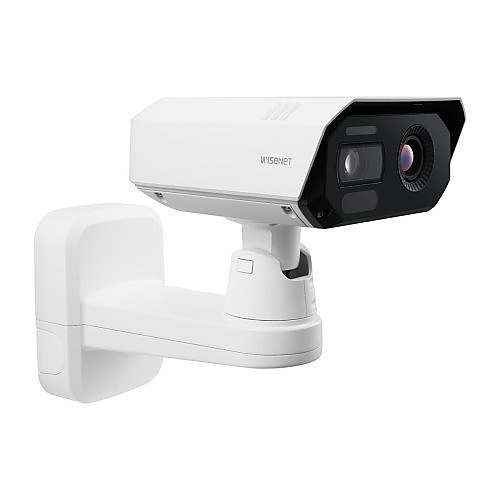

Image of SQ-TMC496KEX
Shop all Hanwha Vision

Hanwha TNM-C4960TD/KEX Series 8MP Bi-Spectrum AI Thermal Multi-Sensor IP Camera, 25mm Fixed Thermal Lens, 10.9-29mm Motorized Varifocal Visible Lens, White, TAA Compliant

TNM-C4960TD|SQ-TMC496KEX
Shop all Hanwha Vision

Hanwha TNM-C4960TD/KEX Series 8MP Bi-Spectrum AI Thermal Multi-Sensor IP Camera, 25mm Fixed Thermal Lens, 10.9-29mm Motorized Varifocal Visible Lens, White, TAA Compliant

TNM-C4960TD|SQ-TMC496KEX
Key Features
  • Wisenet T network Bi-spectrum AI Thermal Camera with a Dual sensor camera featuring a VGA thermal and 4K visible video output.
  • Built-in 25 mm fixed lens (FoV: 17.4° thermal) & 10.9~29 mm motorized varifocal lens (FoV: 42°~15° visible)
  • Triple codec (H.265/H.264/MJPEG), Wise Stream III (visible), WiseStream II (thermal)
Key Features
  • Wisenet T network Bi-spectrum AI Thermal Camera with a Dual sensor camera featuring a VGA thermal and 4K visible video output.
  • Built-in 25 mm fixed lens (FoV: 17.4° thermal) & 10.9~29 mm motorized varifocal lens (FoV: 42°~15° visible)
  • Triple codec (H.265/H.264/MJPEG), Wise Stream III (visible), WiseStream II (thermal)

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Wisenet T network Bi-spectrum AI Thermal Camera with a Dual sensor camera featuring a VGA thermal and 4K visible video output.
  • Built-in 25 mm fixed lens (FoV: 17.4° thermal) & 10.9~29 mm motorized varifocal lens (FoV: 42°~15° visible)
  • Triple codec (H.265/H.264/MJPEG), Wise Stream III (visible), WiseStream II (thermal)
Hanwha Vision

Hanwha TNM-C4960TD/KEX Series 8MP Bi-Spectrum AI Thermal Multi-Sensor IP Camera, 25mm Fixed Thermal Lens, 10.9-29mm Motorized Varifocal Visible Lens, White, TAA Compliant

TNM-C4960TD | SQ-TMC496KEX

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

AI based bi-spectrum camera detects each person individually with 4K resolution. Thermal video of bi-spectrum camera detects temperature change to prevent any possible accidents. Specifically, it informs the viewer of dangerous places to touch by checking thermal images of hot places that cannot be clearly distinguished by the naked eye.

Main Features

  • Wisenet T network Bi-spectrum AI Thermal Camera with a Dual sensor camera featuring a VGA thermal and 4K visible video output.
  • Built-in 25 mm fixed lens (FoV: 17.4° thermal) & 10.9~29 mm motorized varifocal lens (FoV: 42°~15° visible)
  • Triple codec (H.265/H.264/MJPEG), Wise Stream III (visible), WiseStream II (thermal)
  • WDR 120dB
  • Features Based on AI engine: WiseNR II, Wise Stream III (visible only), Analytics events based on AI engine (visible only): Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Stopped vehicle, Traffic jam
  • FIPS 140-2
  • 2x micro SD card (512GB x2)
  • IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
  • PoE+/12VDC
  • Wall & Pole mount all-in-one design

General Information

Name: Hanwha TNM-C4960TD/KEX Series 8MP Bi-Spectrum AI Thermal Multi-Sensor IP Camera, 25mm Fixed Thermal Lens, 10.9-29mm Motorized Varifocal Visible Lens, White, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, Thermal Imaging Cameras
UPC Code:
Country of Origin: Korea. Country of origin is subject to change.

Specifications

Product Documents and Resources

User Manual
Manufacturer Brochure
