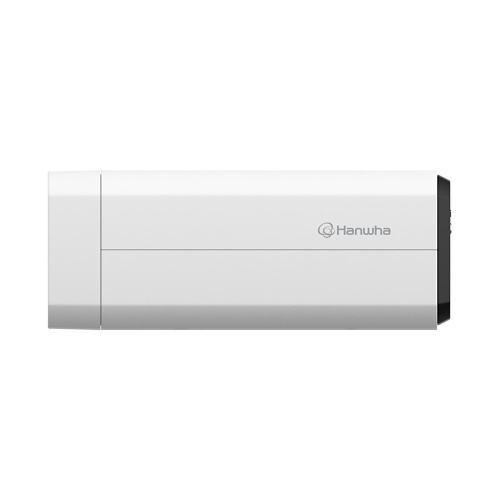

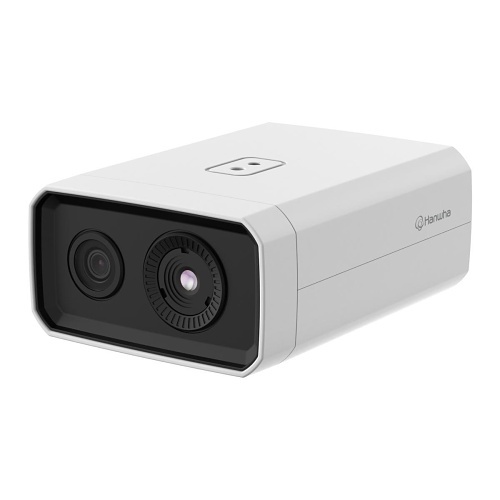

Hanwha TNM-C3620TDR Wisenet T Series Bi-Spectrum AI Radiometric Camera QVGA Thermal / 2MP Visible, 4mm Lens, WDR 150 dB
TNM-C3620TDR
|SQ-TNMC3620T
Shop all Hanwha Vision
Hanwha TNM-C3620TDR Wisenet T Series Bi-Spectrum AI Radiometric Camera QVGA Thermal / 2MP Visible, 4mm Lens, WDR 150 dB
TNM-C3620TDR | SQ-TNMC3620T
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Radiometric thermal cameras provide visual monitoring of an object’s heat signature using various color palettes. They also measure the temperature data. These capabilities allow users to monitor potential problems caused by heat in objects of interest, enabling preventive action before issues escalate. This technology finds application in various vertical sectors, including monitoring electric vehicle (EV) charger stations for overheating issues.
Main Features
- Bi-spectrum monitoring with 2MP visible and QVGA thermal
- AI based Object classification with visible channel only (person)
- Remote Temperature Monitoring within -20-130°C range
- 6 of quadrangle ROI areas for temperature monitoring
- Compact and Light-weight for Indoor purpose
General Information
Name: Hanwha TNM-C3620TDR Wisenet T Series Bi-Spectrum AI Radiometric Camera QVGA Thermal / 2MP Visible, 4mm Lens, WDR 150 dB
Category: Hanwha Vision, Video Surveillance, IP Cameras, Thermal Imaging Cameras, ADI Pro Rewards
UPC Code: 8801089228437
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number SQ-TNMC3620T Brand Name Hanwha Vision Manufacturer Part Number TNM-C3620TDR Product Name TNM-C3620TDR Bi-Spectrum AI Thermal Camera Product Series Wisenet T Product Type Thermal Camera
Effective Camera Resolution 2MP Field of View Diagonal, Horizontal, Vertical Field of View (Horizontal) 50° Field of View (Vertical) 36.4° Lens Type Fixed Maximum Aperture f/1 Maximum Frame Rate 30fps Video Formats H.264, H.265 Video Resolution 1280 x 960
Image Sensor Type Uncooled Microbolometer
Maximum Operating Temperature 266°F Minimum Operating Temperature -4°F
Focal Length 4.7mm Lens Included Yes
Color White Depth 7.42" Height 2.95" Weight 3.77lb Width 5.31"
Input Voltage 12V DC
Indoor/Outdoor Indoor
