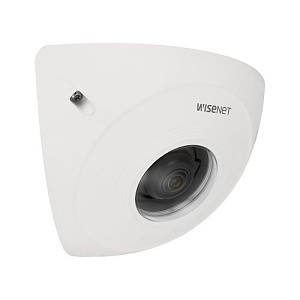

Hanwha TNV-8011C/KEX Series 5MP WDR Vandal Corner IP Camera, 2.3mm Fixed Lens, White, TAA Compliant
TNV-8011C/KEX
|SQ-TNV811CKX
Shop all Hanwha Vision
Hanwha TNV-8011C/KEX Series 5MP WDR Vandal Corner IP Camera, 2.3mm Fixed Lens, White, TAA Compliant
TNV-8011C/KEX | SQ-TNV811CKX
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
With the dimension of 170(W)x165(H)x78.8(D)mm(6.69×6.49×3.10″) and the weight of 830g(1.83lb), TNV-8011C offers a wide FoV (H: 131° / V: 93.4° / D: 174°), making it suitable for SMB and limited space monitoring. And its anti-ligature design makes it also applicable for corrections and behavioral health facilities.
Main Features
- Maximum 5MP resolution
- Maximum 30 fps at all resolutions (H.265/H.264/MJPEG)
- 0.1lux at F2.3(Color), 0.02lux at F2.3(B/W)
- 2.3mm fixed focal
- Anti-ligature design for corrections and behavioral health facilities
- Day & Night Auto(ICR), WDR (120dB)
- Defocus detection, Tampering, Audio detection
- Micro SD/SDHC/SDXC memory slot (128GB)
- Hallway view, WiseStream II support
- PoE, IP66, IP6K9K, IK10
General Information
Name: Hanwha TNV-8011C/KEX Series 5MP WDR Vandal Corner IP Camera, 2.3mm Fixed Lens, White, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, Dome Cameras, ADI Pro Rewards
UPC Code: 8801089220080
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number SQ-TNV811CKX Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number TNV-8011C/KEX Product Model TNV-8011C/KEX Product Name 5MP Anti-ligature Corner-mount Camera Product Series T Product Type Corner Mount Camera
Connectivity Technology Wired Effective Camera Resolution 5MP Field of View Diagonal, Horizontal, Vertical Field of View (Horizontal) 131° Field of View (Vertical) 93.4° Lens Type Fixed Maximum Aperture f/2.3 Maximum Frame Rate 30fps Minimum Focal Length 2.3mm Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP6K9K TAA Compliant Yes
Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 131°F Minimum Operating Temperature 14°F Operating Humidity 95% RH
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.02 lux Shortest Shutter Speed 2 Second
Network (RJ-45) Yes
Focal Length 2.3mm Lens Included Yes Maximum Focal Length 2.3mm
Remote Management Yes
Color White Depth 3.1" Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof Height 6.49" Weight 1.83lb Width 6.69"
Mount Type Corner Mount
Storage Type Memory Card
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
Limited Warranty 3-Year
Country of Origin KR Features Audio Detection, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range Impact Protection Rating IK10
