Hanwha TNU-4051T/KUS Series 640 480 VGA Thermal Positioning Camera, 35mm Fixed Lens, White, TAA Compliant
TNU-4051T
|SQ-TU451TKUS
Shop All Hanwha Vision
Hanwha TNU-4051T/KUS Series 640 480 VGA Thermal Positioning Camera, 35mm Fixed Lens, White, TAA Compliant
TNU-4051T | SQ-TU451TKUS
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

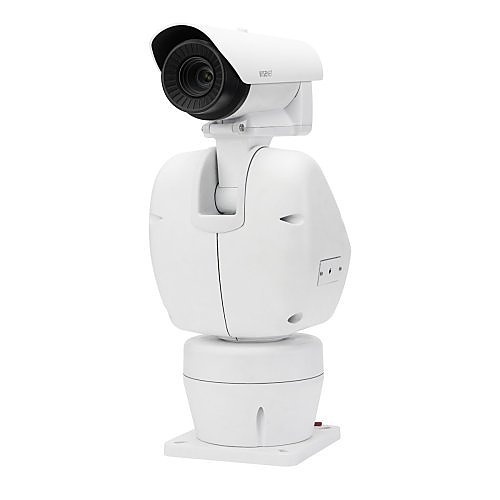

The TNU-4051T / 4041T combines a thermal imaging camera and a positioning unit capable of monitoring a broad range, with its 360˚ endless pan and -90˚ to +40˚ tilt. In addition, the camera’s flexibility is increased by 300 preset positions, allowing users to save the settings for pan / tilt functions and automatically view the location desired.
Specifications
ADI Part Number SQ-TU451TKUS Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number TNU-4051T/KUS Product Model TNU-4051T Product Name VGA Thermal Positioning Camera Product Series T Product Type Network Camera
Connectivity Technology Wired Field of View Diagonal, Horizontal, Vertical Field of View (Horizontal) 17.2° Field of View (Vertical) 13° Lens Type Fixed Maximum Aperture f/1 Maximum Frame Rate 30fps Minimum Focal Length 35mm Video Formats H.264, H.265, MJPEG Video Resolution 640 x 480
Image Sensor Type Uncooled Microbolometer Wide Dynamic Range Yes
Ingress Protection Rating IP66 TAA Compliant Yes
Maximum Video Resolution 1600 x 1200
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 0.9
Network (RJ-45) Yes
Focal Length 35mm Lens Included Yes Maximum Focal Length 35mm
Remote Management Yes
Color White Depth 13.2" Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof Height 20.8" Weight 25.79lb Width 8.6"
Input Voltage 12V DC, 24V AC
Storage Type Memory Card
Analog Video Signal Format CVBS
Limited Warranty 3-Year
Country of Origin KR Features Audio Detection, Back Light Compensation (BLC), Day/Night, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range Impact Protection Rating IK10
