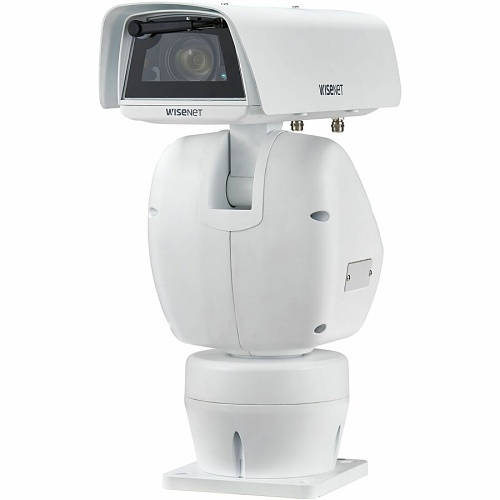

Hanwha TNU-6321/KUS Series 2MP Positioning Zoom IP Camera, 32x Optical Zoom Lens, White, TAA Compliant
Hanwha TNU-6321/KUS Series 2MP Positioning Zoom IP Camera, 32x Optical Zoom Lens, White, TAA Compliant
- Max. 2MP (1920 x 1080) resolution
- 4.44 to 142.6 mm (32x) varifocal lens
- Max. 60 fps at 2MP (H.264), Max. 15 fps at 2MP (MJPEG)
- Max. 2MP (1920 x 1080) resolution
- 4.44 to 142.6 mm (32x) varifocal lens
- Max. 60 fps at 2MP (H.264), Max. 15 fps at 2MP (MJPEG)
Sign In for Dealer Pricing
Become an ADI Customer- Max. 2MP (1920 x 1080) resolution
- 4.44 to 142.6 mm (32x) varifocal lens
- Max. 60 fps at 2MP (H.264), Max. 15 fps at 2MP (MJPEG)
Hanwha TNU-6321/KUS Series 2MP Positioning Zoom IP Camera, 32x Optical Zoom Lens, White, TAA Compliant
TNU-6321/KUS | SQ-TU6321KUS
Please sign in to view pricing and availability and to add to cart.
Accessories
Product Overview
Optimized for harsh outdoor environments and wide area monitoring
Network positioning camera TNU-6321 provides complete monitoring with its ground-to-sky view of -90° to 40° and endless 360° pan.
Equipped with a wiper and defroster to keep the window out of snow, rain, and dust, the camera offers complete visibility, while its waterproof / dustproof certification (IP66) and operation in low & high temperature make it an optimal choice for challenging outdoor conditions.
Detailed remote monitoring in low-light environment

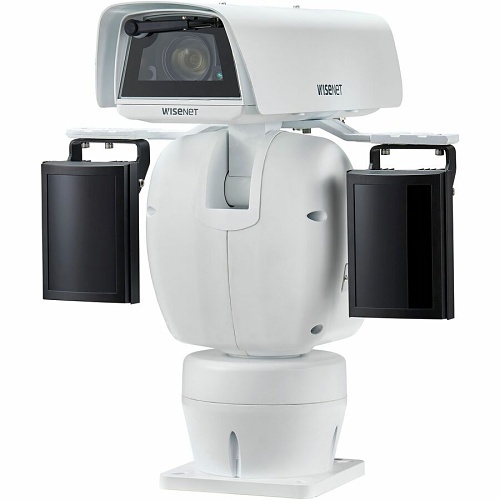

When mounting IR illuminator (SPI-50 available for additional purchase), the camera can secure up to 200 meters of visibility in dark conditions with no light and configure up to 255 pre-set positions, offering tight security monitoring for 24 hours.
A single camera can provide wide-area coverage, which is ideal for various applications such as airports, ports and periphery security monitoring.
Main Features
- Max. 2MP (1920 x 1080) resolution
- 4.44 to 142.6 mm (32x) varifocal lens
- Max. 60 fps at 2MP (H.264), Max. 15 fps at 2MP (MJPEG)
- H.265, H.264, MJPEG codec support
- Day and Night (ICR), WDR (120dB), Defog
- Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection
- Face detection, Motion detection
- MicroSD / SDHC / SDXC slot
General Information
Specifications
-
ADI Part Number SQ-TU6321KUS Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number TNU-6321/KUS Product Model TNU-6321/KUS Product Name 2MP Positioning Zoom Camera Product Series T Product Type Zoom Camera Weight 30.86 lb
-
Connectivity Technology Wired Effective Camera Resolution 2MP Field of View H: 61.8°-2.19°, V: 36.2°-1.24° Lens Type DC Auto Iris Maximum Aperture f/1.6 Maximum Frame Rate 60 fps Minimum Focal Length 4.4mm Night Vision Yes Night Vision Type Color Optical Zoom 32x Video Formats H.264M, H.265, MJPEG
-
Image Sensor Type CMOS Night Vision Distance 4.92 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66 TAA Compliant Yes
-
Maximum Video Resolution 1920 x 1080
-
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity <90% RH
-
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.005 lux Shortest Shutter Speed 1 Second
-
Network (RJ-45) Yes
-
Focal Length 4.44-142.6 mm Lens Included Yes Maximum Focal Length 142.6 mm Minimum Aperture f/4.4
-
Remote Management Yes
-
Color White Depth 18.1" Durability Dustproof, Impact Resistant, Waterproof Form Factor PTZ Height 20.8" Width 8.6"
-
Input Voltage 24V AC
-
Recording Formats Full HD Storage Type Memory Card
-
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
-
Limited Warranty 3-Year
-
Country of Origin KR Features Audio Detection, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
