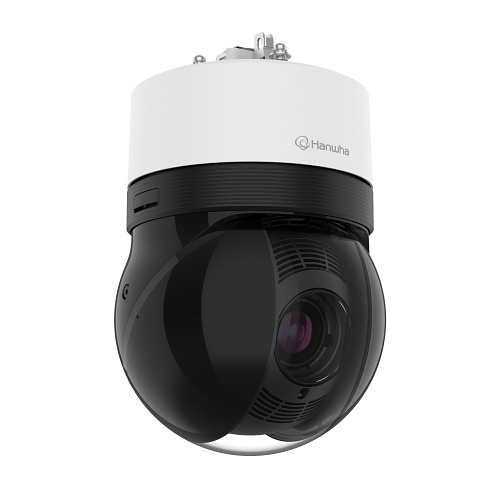

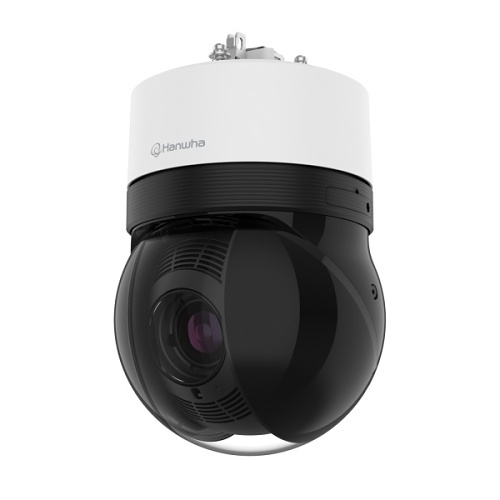

Hanwha XNP-C9310R 4K 8MP IR Vision AI Focus PTZ IP Camera, 31x Zoom, 6.91-214.64mm Lens
XNP-C9310R
|SQ-XNPC9310R
Hanwha XNP-C9310R 4K 8MP IR Vision AI Focus PTZ IP Camera, 31x Zoom, 6.91-214.64mm Lens
XNP-C9310R | SQ-XNPC9310R
Please sign in to view pricing, availability, and to add to cart.
Product Overview
Powered by WN7 and AI,8MP (4K UHD) @ 30FPS resolution, 6.91mm~214.64mm (31x) lens with Wise AF intelligent autofocus, adaptive Wise IR (250m), extreme WDR 120dB, Day & Night ICR, H.265, H.264, MJPEG triple codec with WiseStream III (based on AI engine) support, Analytics events based on AI engine:Object detection (Person/Face/ Vehicle/License plate), Virtual line (Crossing/ Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box), AI object auto-tracking (Person/Vehicle) with target lock tracking, BLC, HLC, SSDR, lens heater for water/snow removal, IP66, IP67, IK10, NEMA4X, NEMA-TS 2(2.2.7, 2.2.8, 2.2.9), FIPS 140-2, PoE /HPoE injector included, Operating Temperature -50°C~ 55°C (-58°F ~ 131°F), (Compatible with I/O Box SPM-4210)
Main Features
- Maximum 4K resolution
- 6.91 ~ 214.7mm(31x) motorized varifocal
- IR viewable length Wise IR 250m (820')
- Color: 0.06 Lux (F1.36, 1/30sec, 30 IRE) / BW: 0.006 Lux (F1.36, IR LED Off), 0Lux (IR LED On)
- Day & Night (ICR), WDR (120dB), WiseNRⅡ(Using AI engine), prefer shutter
- H.265, H.264, MJPEG codec, WiseStream, WiseStreamⅢ (Using AI engine)
- DIS with built-in Gyro sensor
- Reinforced durability (IP66/IP67, IK10, NEMA4X)
- ONVIF Profile S/G/T/M, SUNAPI(HTTP API), Wisenet open platform
- Next level cybersecurity (TPM with FIPS 140-2 level2)
General Information
Specifications
ADI Part Number SQ-XNPC9310R Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XNP-C9310R Product Model XNP-C9310R Product Name 4K 31x AI IR PTZ Product Type PTZ Camera
Effective Camera Resolution 8MP Field of View Diagonal, Horizontal, Vertical Field of View (Horizontal) 60.6° Field of View (Vertical) 35.1° Maximum Aperture f/1.36 Maximum Frame Rate 30fps Minimum Focal Length 6.91mm Optical Zoom 31x
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67
Maximum Video Resolution 3840 x 2160
Maximum Operating Temperature 131°F Minimum Operating Temperature -58°F Operating Humidity 95% RH (Non-condensing)
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.006 lux Shortest Shutter Speed 2 Second
Focal Length 6.91-214.7mm Maximum Focal Length 214.7mm
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor PTZ Weight 9.70lb

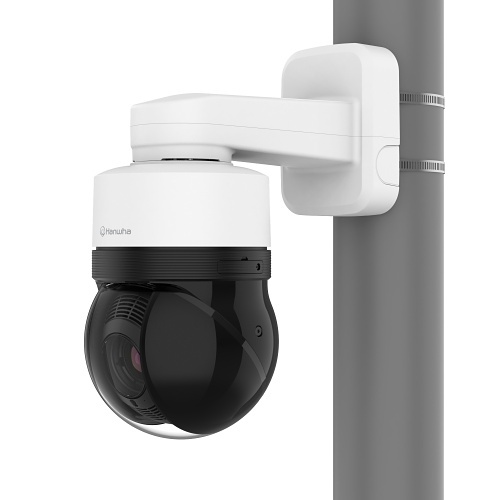

Mount Type Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount
Impact Protection Rating IK10
