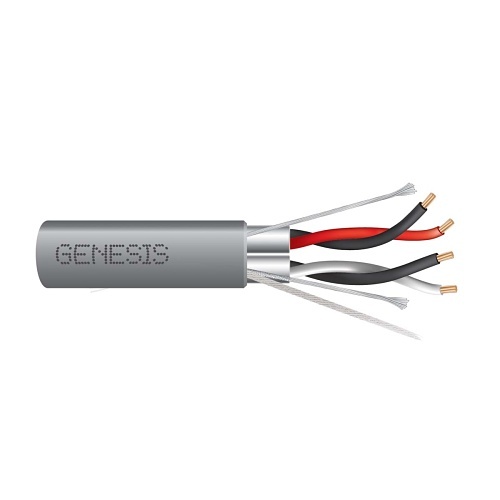

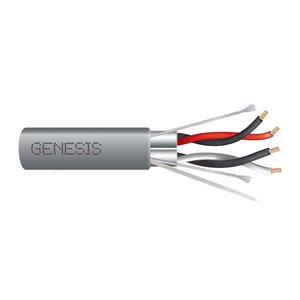

Genesis 12641109 22/2-Pair Each-Pair-Shielded Cable, General Purpose, CM, 1000' (304.8 m) Pull Box, Gray
12641109|WG-12641109
Genesis 12641109 22/2-Pair Each-Pair-Shielded Cable, General Purpose, CM, 1000' (304.8 m) Pull Box, Gray
12641109|WG-12641109
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over each pair
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over each pair
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over each pair
Genesis
Genesis 12641109 22/2-Pair Each-Pair-Shielded Cable, General Purpose, CM, 1000' (304.8 m) Pull Box, Gray
12641109 | WG-12641109
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Unshielded Multipair Cables offer a versatile solution for various signal and limited-power transmission applications.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over each pair
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 60 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 12641109 22/2-Pair Each-Pair-Shielded Cable, General Purpose, CM, 1000' (304.8 m) Pull Box, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Multipair Cables
UPC Code: 619172008563
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-12641109 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 12641109 Packaged Quantity 1 Product Model 12641109 Product Name 12641109 Control Cable Product Type Access & Security Cable
-
American Wire Gauge 22AWG Cable Rating General Purpose Cable Type Multi-conductor, Multi-pair Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Device Supported Burglar Alarm, Intercom, Phone, Speaker Jacket Material PVC Jacket Type General Purpose Number of Conductors 4 Number of Pairs 2 Shielding Yes Solid or Stranded Stranded
-
TAA Compliant Yes
-
Cable Length 1000' Color Gray Insulation Material PP Material Bare Copper Package Type REELEX Pull Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Features Sunlight Resistant Indoor/Outdoor Indoor
