Image of WH-4XMTNR
Shop all Eaton

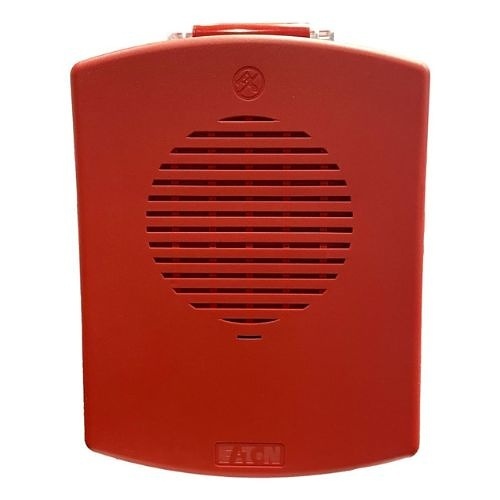

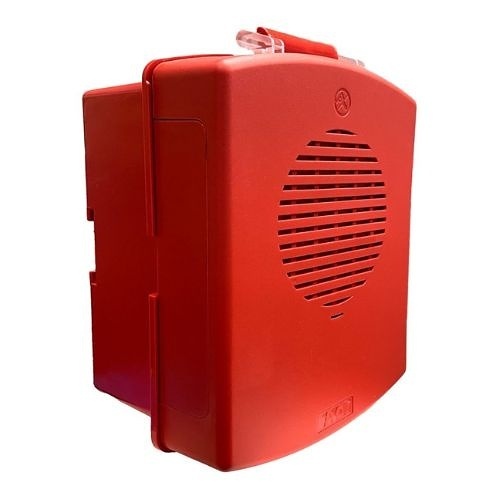

Eaton EL4XMT-NR Multi with 4x Surface Box, Red

EL4XMT-NR|WH-4XMTNR
Shop all Eaton

Eaton EL4XMT-NR Multi with 4x Surface Box, Red

EL4XMT-NR|WH-4XMTNR
Key Features
  • The cutting-edge solution delivers optimal performance thanks to its NEMA type 3R and 4X ratings, which make it resistant to corrosion and ice formation (4X only)
  • The IP54 and IP66 ratings provide superior protection against dust and water, making it ideal for areas of high humidity, extreme heat, or severe cold
  • With six candela settings in a single device, Eluxa features one of the industry's lowest current draws across the full candela range
Key Features
  • The cutting-edge solution delivers optimal performance thanks to its NEMA type 3R and 4X ratings, which make it resistant to corrosion and ice formation (4X only)
  • The IP54 and IP66 ratings provide superior protection against dust and water, making it ideal for areas of high humidity, extreme heat, or severe cold
  • With six candela settings in a single device, Eluxa features one of the industry's lowest current draws across the full candela range

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • The cutting-edge solution delivers optimal performance thanks to its NEMA type 3R and 4X ratings, which make it resistant to corrosion and ice formation (4X only)
  • The IP54 and IP66 ratings provide superior protection against dust and water, making it ideal for areas of high humidity, extreme heat, or severe cold
  • With six candela settings in a single device, Eluxa features one of the industry's lowest current draws across the full candela range
Eaton

Eaton EL4XMT-NR Multi with 4x Surface Box, Red

EL4XMT-NR | WH-4XMTNR

Please sign in to view pricing and availability and to add to cart.

Accessories

Overview
Specifications
Documents

Product Overview

The Wheelock Eluxa weatherproof series EL3RMT / EL4XMT Multi-Tone Horn and EL4XMTST/EL3RMTST Multi-Tone Horn Strobe (and Amber) appliances are designed for easy installation with a pre-wire capable EL4XBB surface box or EL3RMP mounting plate. Eluxa Multi-Tone requires two circuits (NACs); one for the Eluxa LED strobe and the other for the Multi-Tone audible. In this way, the Eluxa Multi-Tone can be "coded" without affecting the strobe. In addition, Eluxa Multi-Tone offers a choice of eight different tones to select from. This includes a temporal T3 tone that can be synchronized.

Main Features

  • The cutting-edge solution delivers optimal performance thanks to its NEMA type 3R and 4X ratings, which make it resistant to corrosion and ice formation (4X only)
  • The IP54 and IP66 ratings provide superior protection against dust and water, making it ideal for areas of high humidity, extreme heat, or severe cold
  • With six candela settings in a single device, Eluxa features one of the industry's lowest current draws across the full candela range
  • The Eluxa outdoor product line reduces overall power consumption, allowing for more appliances on each circuit (NAC) and fewer power supplies
  • The Wheelock Eluxa 3R/4X series meets NFPA 2016 20 millisecond light pulse duration code requirements
  • Eluxa EL3RMT/EL4XMT Multi-Tone Horn and EL4XMTST/EL3RMTST Multi-Tone Horn Strobe (and Amber) are UL Certified for fire protection service under Standard UL1971 for Signaling Devices for the Deaf and Hard of Hearing, UL1638 for Visual Signaling Devices and Standard UL464 for Audible Signaling Devices.
  • The Eluxa 4X/3R Multi-Tone is also ULC Listed under Standard ULC 526 for Visual Signaling Devices and under Standard ULC-525 for Audible Signaling Devices for Fire Alarm Systems.
  • All Eluxa 4X/3R models are listed for indoor / outdoor use, and for wall or ceiling mount

General Information

Name: Eaton EL4XMT-NR Multi with 4x Surface Box, Red
Category: Eaton, Fire, Fire Notification Appliances, Strobes
UPC Code: 786697065699
Country of Origin: Romania. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
Manufacturer Brochure
Additional Resources
