Lowell CS650-DW 50W Mono Volume Control and Program Selector Switch with 1 and 2-Gang Decorator Wall Plates, White
CS650-DW
|YL-CS650DW
Shop All Lowell Manufacturing
Lowell CS650-DW 50W Mono Volume Control and Program Selector Switch with 1 and 2-Gang Decorator Wall Plates, White
CS650-DW | YL-CS650DW
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

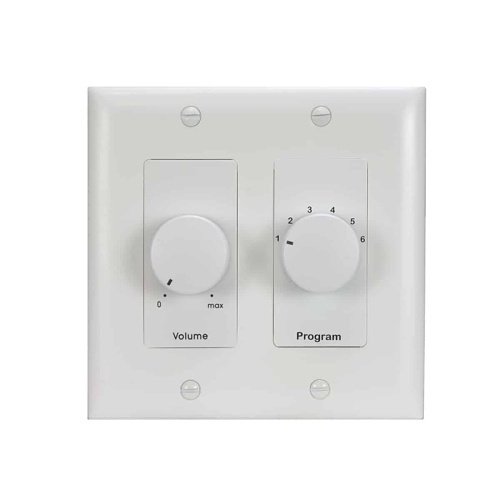

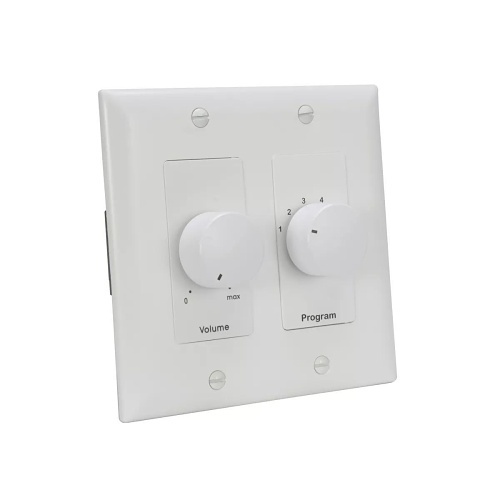

Combination wall unit features a 50W mono volume control (autoformer attenuator style) plus a six-source program selector switch. Includes a 2-gang decorator wall plate and two 1-gang decorator wall plates for separate installation. White.
Main Features
- 50W volume control for use with 70V or 25V speaker lines provides 33dB attenuation in 10 steps. Last two steps before off are 6dB (33dB total)
- Wiring connections are plug-in screw terminations for prewire convenience
- Six-source program selector switch is two-pole, non shorting rotary style to assure complete isolation between lines
- Connections are Euro-style screw terminals allowing the unit to be field connected for use together or independently
- Includes decorator style 2-gang wall plate plus two 1-gang plates for separate location mounting
- The 2-gang plate (4.562 " x 4.5" x 2.125 ") is made to install in a 2-gang or 4" square E.O. box with mud ring (not included)
- Includes knob and mounting screws
General Information
Name: Lowell CS650-DW 50W Mono Volume Control and Program Selector Switch with 1 and 2-Gang Decorator Wall Plates, White
Category: Lowell Manufacturing, Pro AV, Commercial Audio, Pro Audio Controllers
UPC Code: 811859033992
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number YL-CS650DW Brand Name Lowell Manufacturing Manufacturer Part Number CS650-DW
Color White
Country of Origin US
