AXIS P3925-LRE P39 Series 2MP WDR Onboard IP Camera for Exterior Monitoring, 6mm Lens, White
P3925-LRE|Z4-02091001
AXIS P3925-LRE P39 Series 2MP WDR Onboard IP Camera for Exterior Monitoring, 6mm Lens, White
P3925-LRE|Z4-02091001
Key Features
- Built-in cybersecurity features
- Complies with EN50155 and EN45545-2
- IR illumination and EIS
Key Features
- Built-in cybersecurity features
- Complies with EN50155 and EN45545-2
- IR illumination and EIS
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Built-in cybersecurity features
- Complies with EN50155 and EN45545-2
- IR illumination and EIS
Axis Communications
AXIS P3925-LRE P39 Series 2MP WDR Onboard IP Camera for Exterior Monitoring, 6mm Lens, White
P3925-LRE | Z4-02091001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

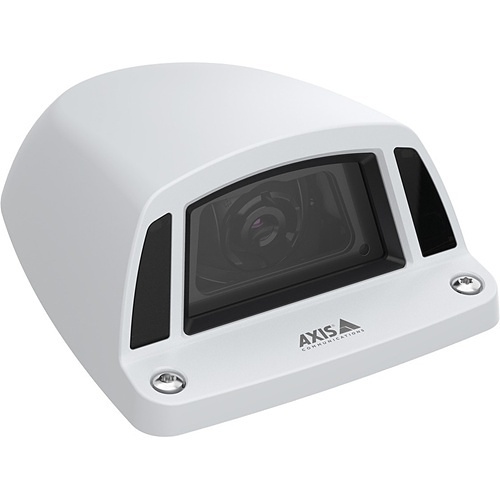

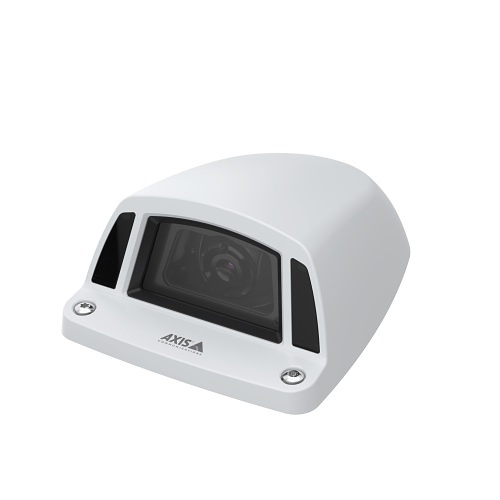

AXIS P3925-LRE specially designed for side view monitoring on buses, trains, and transportation vehicles. It can also be used for identifying maintenance needs on rolling stock, for example, wear and tear of pantograph collector strips. This robust and compact camera features a tempered glass window and complies with transport industry standards and IK10+, IP66, IP67, and IP6K9K. It delivers HDTV 1080p with Lightfinder for color images in poor light and Forensic WDR for maximal forensic usability in mixed light conditions. Plus, built-in IR Illumination enables monitoring in complete darkness. Furthermore, it supports exchangeable lenses for full flexibility.
Main Features
- Built-in cybersecurity features
- Complies with EN50155 and EN45545-2
- IR illumination and EIS
- Lightfinder and Forensic WDR
- Low latency mode
General Information
Name: AXIS P3925-LRE P39 Series 2MP WDR Onboard IP Camera for Exterior Monitoring, 6mm Lens, White
Category: Axis Communications, Video Surveillance, IP Cameras, IP Mobile & Dashboard Cameras
UPC Code: 7331021072459
Country of Origin: Japan. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-02091001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02091-001 Product Line P Product Model P3925-LRE Product Name AXIS P3925-LRE M12 Product Series P39 Product Type Fixed dome cameras Supported Network Protocols IPv6 USGv6 Weight 1.70lb
-
Aperture f/1.9 Connectivity Technology Wired Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Mount Type M12 Lens Type Fixed Maximum Aperture f/1.9 Maximum Frame Rate 30fps Minimum Focal Length 6mm Night Vision Yes Video Formats H.264, H.265, MJPEG, MPEG-4
-
Image Sensor Type CMOS Night Vision Distance 65.62 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP67 NDAA Compliant Yes TAA Compliant Yes
-
Image Sensor Size 1/2.9" Maximum Video Resolution 1920 x 1080
-
Maximum Operating Temperature 158°F (70°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 0.95 Operating Temperature (T-T) -40-131°F
-
Longest Shutter Speed 2 Second Minimum Illumination 0.07 lux Shortest Shutter Speed 1/33500 Second
-
Network (RJ-45) Yes
-
Focal Length 6mm Lens Included Yes Maximum Focal Length 6 mm
-
Memory Card Supported Yes
-
Remote Management Yes
-
ADI Part Number Replaces Z4-0662001, Z4-0662021, Z4-0663001, Z4-0663021 Model Number Replaces 0662-001, 0662-021, 0663-001, 0663-021
-
Color White Durability Dustproof, Impact Resistant, Waterproof
-
Maximum Power Consumption 12W Power over Ethernet (PoE) Yes
-
Mount Type Vehicle Mount
-
Recording Formats HD
-
Maximum Resolution 1280 x 720
-
Certifications ECE R10 rev.06, EN 50121-3-2, EN 50121-4, EN 50498, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN35, KCC KN22 Class A, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Country of Origin JP Environmental Certification EN 50155 Class OT2/ST2 (2021), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60721-3-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 61373 Category 1 Class B, IEC/EN 62262 IK10+ (50J), ISO 20653 IP6K9K, NEMA 250 Type 4X Features Built-in IR LED, Day/Night, Defog, Electronic image stabilization, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection Impact Protection Rating IK10 Indoor/Outdoor Outdoor
