AXIS D8004 4-Channel Unmanaged PoE Switch with 60W PoE Power Budget
D8004
|Z4-02101004
Shop all Axis Communications
AXIS D8004 4-Channel Unmanaged PoE Switch with 60W PoE Power Budget
D8004 | Z4-02101004
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

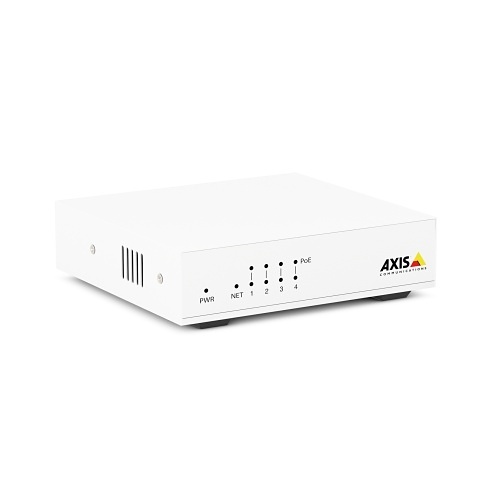

The palm-sized AXIS D8004 Unmanaged PoE Switch delivers network and power for up to 4 network devices with plug and play installation. Using AXIS D8004 Unmanaged PoE Switch as a central power source simplifies both installation and maintenance. The switch, together with AXIS surveillance cards, is perfect for small systems with few devices and basic video storage requirements. AXIS D8004 Unmanaged PoE Switch is also ideal when it’s not possible to pull multiple cables. If there’s local power available, simply pull one cable with data connection from the core switch or router, and AXIS D8004 Unmanaged PoE Switch can provide Power over Ethernet (PoE) for all 4 products.
Main Features
- 4-port 10/100 Mbps 802.3af/at PoE+
- 60 W PoE power budget
- Level VI energy efficiency compliance
- Palm-sized, metal casing
- Plug and play installation
General Information
Name: AXIS D8004 4-Channel Unmanaged PoE Switch with 60W PoE Power Budget
Category: Axis Communications, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 7331021072565
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02101004 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02101-004 Product Line D Product Model D8004 Product Name AXIS D8004 UNMANAGED POE SWITCH US Product Series D80 Product Type Network Switches
Material Metal Media Type Supported Twisted Pair Network Switch Type PoE, Unmanaged Power Consumption 62.50W
NDAA Compliant Yes TAA Compliant Yes
Operating Temperature (T-T) 32-122°F
Total Number of Network Ports 4
Manageable No Security Features IEC/EN 60950-1|IEC/EN 62368-1|UL 60950-1
Network Technology 10/100Base-TX
Ethernet Technology Fast Ethernet Layer Supported 2
Depth 3.1" Height 0.8" Weight 6.07oz Width 3.5"
Frequency 50 Hz|60 Hz Input Voltage 100-240V AC Maximum Power Consumption 3W PoE (RJ-45) Port Yes PoE Budget 60W Power Source PoE+, Power Supply
Mount Type Desktop Mount
Limited Warranty 3-Year
Certifications EN 55024, EN 55032 Class B, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), RCM AS/NZS CISPR 32 Class B Country of Origin CN Environmental Certification WEEE Environmentally Friendly Yes Package Contents - D8004 Unmanaged PoE Switch
- Power Cord
- Power Adapter
- 4 x Rubber Feet
- 2 x Brackets
