AXIS T91D61 Wall Mount 1.5" NPS Thread for Fixed Dome Pendant Kits
Brand: AXIS Communications
ADI #:Z4-5504821
Model #: 5504-821
Name: AXIS T91D61 Wall Mount 1.5" NPS Thread for Fixed Dome Pendant Kits
- Device Supported: Surveillance Camera
- Maximum Load Capacity: 33 lb
- Features: Cable Management
Product Overview

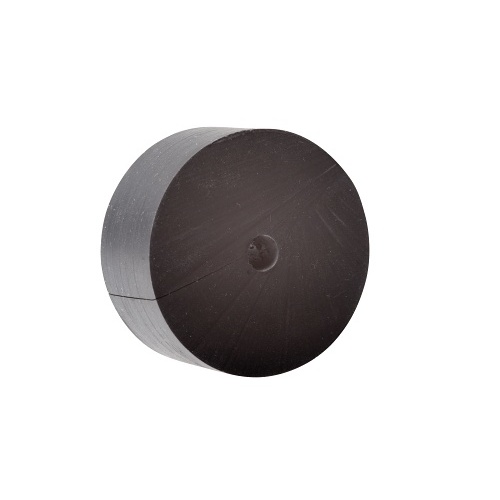

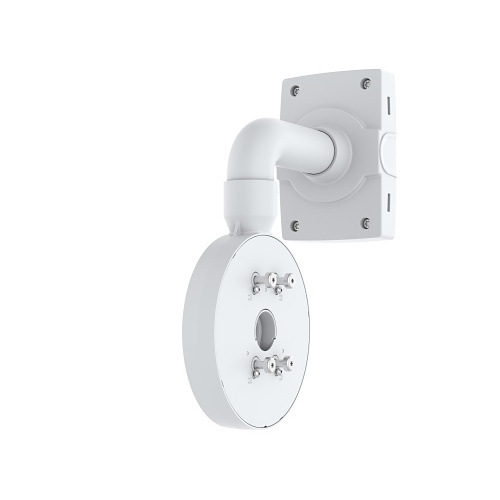

Aluminum wall mount with 1.5″ NPS thread. Compatible with Axis fixed dome pendant kits and Axis ACI 3/4” conduit adapters. The cables can be routed through the back, or from the side by using a conduit connection. IncludesAXIS T91A6 Pipe Seal.
Main Features
- Device Supported: Surveillance Camera
- Maximum Load Capacity: 33 lb
- Features: Cable Management
- Height: 4.9"
- Width: 5.5"
- Depth: 10.5"
- Application/Usage: Wall, Indoor/Outdoor
- Compatibility: AXIS Network Cameras:, M3004-V, M3005-V, M3006-V, M3007-V, M3007-PV, M3024-LVE, M3025-VE, M3026-VE, M32 Series, P3301, P3301-V, P3304, P3304-V, P33 Series, M50 Series, P55 Series, Q60 Series
General Information
Name : AXIS T91D61 Wall Mount 1.5" NPS Thread for Fixed Dome Pendant Kits , AXIS CommunicationsCategory : Mounts
UPC Code : 7331021040564
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-5504821
Brand Name : AXIS
Manufacturer : Axis Communications
Manufacturer Part Number : 5504-821
Product Model : T91D61
Product Name : T91D61 Wall Mount 1.5" NPS
Product Type : Camera Mount
Weight (Approximate) (g) : 1400
Technical Information
Device Supported : Cabinet, Holder, Mounting Bracket, Network Camera
Maximum Load Capacity : 33 lb
Maximum Load Capacity (g) : 14968.548
Physical Characteristics
Application/Usage : Indoor/Outdoor, Pendant, Wall
Depth : 10.5"
Depth (mm) : 266.7
Height : 4.9"
Height (mm) : 124.46
Product Color : White
Product Material : Aluminum
Weight (Approximate) : 3.09 lb
Width : 5.5"
Width (mm) : 139.7
Product Information
Finishing : Powder Coated
Warranty
Limited Warranty : 3 Year
Miscellaneous
Country of Origin : Sweden
Features : Cable Hole, Cable Management, Flexible, IK10, Robust, Vandal Resistant
Package Contents : <ul> <li>T91D61 Wall Mount 1.5" NPS</li> <li>T91A6 Pipe Seal</li> <li>Installation Guide</li> </ul>
