Evolution EV4K7014 4K 1x4 HDMI Splitter Over Cat6 Cable with HDMI Loop-out

EV4K7014

ZX-EV4K7014

Compare

Sign In for Dealer Pricing

New to ADI?Become a Customer

Data Sheet

Shop All Evolution by Vanco

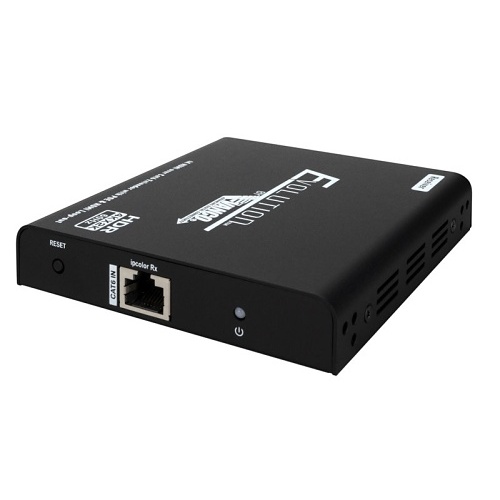

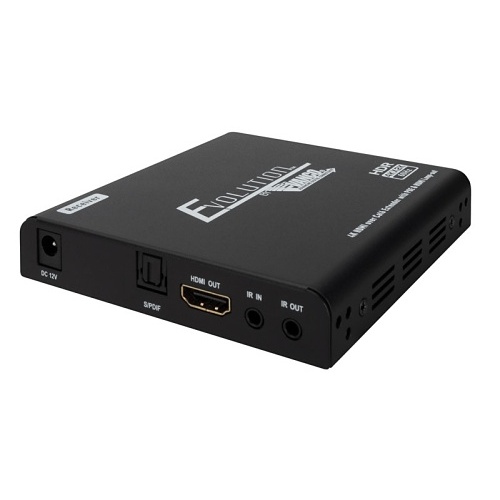

Evolution EV4K7014 4K 1x4 HDMI Splitter Over Cat6 Cable with HDMI Loop-out

EV4K7014 | ZX-EV4K7014

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

Complete kit with 4 PoE Receivers included

Main Features

Allows a single source to be split and extended to multiple displays
Features an additional HDMI output which can be used for a local display or to cascade to another splitter for a larger distribution system
Transmission range extends 4K at 60Hz, 4:4:4 Chroma with HDR10 and IR up to 230' and 1080p up to 330' over a single Cat6 cable
Features Power over Ethernet (PoE) Technology which transmits power over Cat6, allowing the receivers to be powered without connecting a power supply
Latency under 30ms
Supports bi-directional IR (20 to 60 kHz) for source or display control
IR accessories included allowing for source control from each UTP display location
Features auto and manual EDID options for compatibility with source and displays
Digital audio breakout on the receivers for source audio extraction

General Information

Name: Evolution EV4K7014 4K 1x4 HDMI Splitter Over Cat6 Cable with HDMI Loop-out

Category: Evolution by Vanco, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Splitters, Pro HDMI Splitters

UPC Code: 741835120654

Country of Origin: China. Country of origin is subject to change.

Specifications

: ADI Part Number ZX-EV4K7014 Brand Name Evolution by Vanco Manufacturer Part Number EV4K7014 Product Line Evolution Product Model EV4K7014 Product Type HDMI Splitter

: Maximum Operating Distance 230'

: Maximum Video Resolution 3840 x 2160

: Number of HDMI Inputs 1 Number of HDMI Outputs 1

: ADI Part Number Replaces ZX-EV4K1014 Model Number Replaces EV4K1014

: Height 1.5" Weight 1.5lb Width 4.5"

: Length 10.5"

: Country of Origin CN

Documents and Resources

Download All Documents

Product Data Sheet

User Manual
