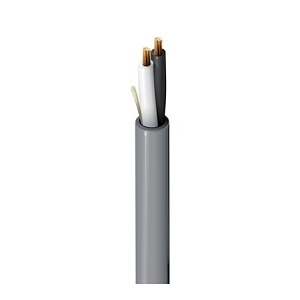

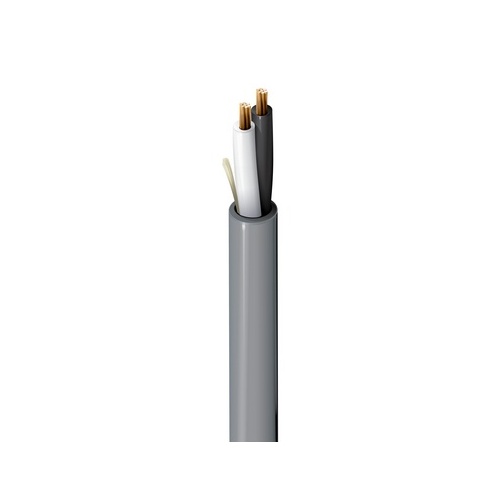

Belden 6100UE 008Z1000 14/2 Stranded Security and Commercial Audio Cable, Plenum, BC, CL2P, Flamarrest, 1000' (304.8m) ReelTuff Box, Gray
6100UE 008Z1000
|7B-6100UE008
Color: Gray
Cable Length: 1000'
American Wire Gauge: 14AWG
Shop all Belden
Belden 6100UE 008Z1000 14/2 Stranded Security and Commercial Audio Cable, Plenum, BC, CL2P, Flamarrest, 1000' (304.8m) ReelTuff Box, Gray
6100UE 008Z1000 | 7B-6100UE008
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Security & Commercial Audio Cable, Plenum-CL2P, 2 Conductor 14 AWG stranded (19x27) bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
Main Features
- Offers intense audio compatibility
- Features Bare Wire cable type to better acco mmodate your precise requirements with maximum productivity
- Stranded feature for better reliability and ensure maximum productivity
- Fully compatible with intercoms
General Information
Name: Belden 6100UE 008Z1000 14/2 Stranded Security and Commercial Audio Cable, Plenum, BC, CL2P, Flamarrest, 1000' (304.8m) ReelTuff Box, Gray
Category: Belden, Wire & Cable, Speaker Cables, Plenum Audio Cables
UPC Code: 612825423409
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-6100UE008 Brand Name Belden Manufacturer Belden CDT, Inc Manufacturer Part Number 6100UE 008Z1000 Product Name Security & Sound, 2 Conductor 14 AWG BC, CL2P Product Type Audio Cable
American Wire Gauge 14AWG Application/Usage Intercom/PA Systems, Sound/Audio Systems Cable Rating Plenum Cable Type Category 6 Conductor Count 2 Conductor Material Bare Copper Device Supported Audio System, Intercom, Public Address System, Sound System Jacket Material PVC-LS Jacket Type Plenum Material Bare Copper Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded
Operating Temperature (T-T) 0-75°C
Cable Length 1000' Color Gray Insulation Material PVC-LS Package Type ReelTuff Box
Length 1000'
Limited Warranty 10-Year
Environmental Certification China RoHS 2, EU RoHS, EU WEEE, RoHS 2 Environmentally Friendly Yes Features Bendable, Stranded Indoor/Outdoor Indoor
