Genesis 22141009 18/2 Stranded Shielded Riser Cable, CL3R, FPLR, CMR, FT4, Sunlight Resistant, 1000' (304.8m), Reel, Gray
22141009|WG-22141009
Color: Gray
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 18AWG
Genesis 22141009 18/2 Stranded Shielded Riser Cable, CL3R, FPLR, CMR, FT4, Sunlight Resistant, 1000' (304.8m), Reel, Gray
22141009|WG-22141009
Color: Gray
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 18AWG
Genesis
Genesis 22141009 18/2 Stranded Shielded Riser Cable, CL3R, FPLR, CMR, FT4, Sunlight Resistant, 1000' (304.8m), Reel, Gray
22141009Â |Â WG-22141009
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

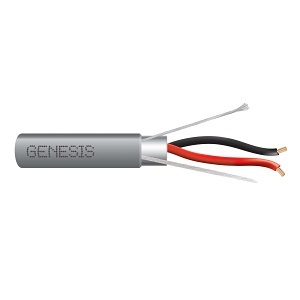

This Genesis® cable features 2 stranded 18 AWG copper conductors, an overall foil shield with a drain wire, and a riser rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
Main Features
- Control the compatible device with ease
- Features BareWire cable type to better acco mmodate your precise requirements with maximum productivity
- Stranded feature for better reliability and ensure maximum productivity
- Fully compatible with alarms
- Fully compatible with alarms
- Gray jacket
General Information
Name: Genesis 22141009 18/2 Stranded Shielded Riser Cable, CL3R, FPLR, CMR, FT4, Sunlight Resistant, 1000' (304.8m), Reel, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Riser Shielded Cables
UPC Code: 619172041867
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-22141009 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 22141009 Packaged Quantity 1 Product Model 22141009 Product Name 22141009 - 18 AWG 2C STR Shielded Riser, Gray, 1000 FT. Reel Product Type Access & Security Cable Weight (Approximate) (g) 8300.74 Â
-
American Wire Gauge 18AWG Cable Listing CL3R, CMR, FPLR, FT4, Sunlight Resistant Cable Rating Riser Cable Type Multi-conductor/Multi-pair Conductor Count 1 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 18/2 Device Supported Alarm, Phone Jacket Material PVC Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded Â
-
Cable Length 1000' Cable Length (mm) 304800 Color Gray Insulation Material PP Material Bare Copper Package Type Reel Weight (Approximate) 18.30 lb Â
-
Limited Warranty 3 Year; 3-for-1 Â
-
Environmental Certification RoHS Environmentally Friendly Yes Features Stranded, Sunlight Resistant, UV Resistant Indoor/Outdoor Indoor TAA Compliant Yes Â
