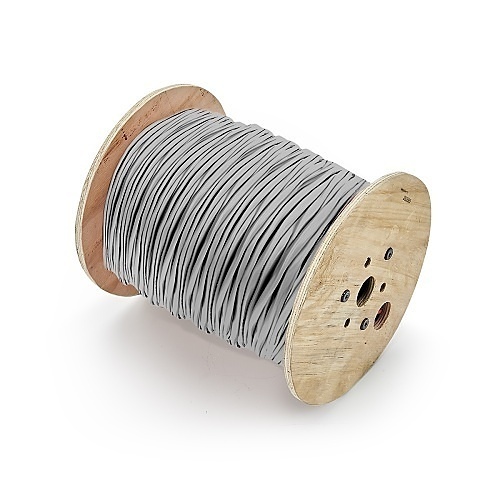

Genesis 22161009 18/6 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, Gray
22161009|WG-22161009
Color: Gray
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 6
American Wire Gauge: 18AWG
Genesis 22161009 18/6 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, Gray
22161009|WG-22161009
Color: Gray
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 6
American Wire Gauge: 18AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Genesis
Genesis 22161009 18/6 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, Gray
22161009 | WG-22161009
Please sign in to view pricing and availability and to add to cart.
Accessories
ADI # 0E-75DW2
MODEL # 0E-75DW2
Sign In for Dealer Pricing
ADI # 0E-RG15050
MODEL # 0E-RG15050
Sign In for Dealer Pricing
ADI # 0E-WT1450B5
MODEL # 0E-WT1450B5
Sign In for Dealer Pricing
ADI # 0E-WTACB
MODEL # 0E-WTACB
Sign In for Dealer Pricing
ADI # 0E-GR6
MODEL # 0E-GR6
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 22161009 18/6 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Riser Shielded Cables
UPC Code: 619172021173
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-22161009 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 22161009 Packaged Quantity 1 Product Model 22161009 Product Name 22161009 - 18 AWG 6C STR Shielded Riser, Gray, 1000 FT. Reel Product Type Access & Security Cable Weight 41.10 lb
-
American Wire Gauge 18AWG Cable Rating Riser Cable Type Multi-conductor, Multi-pair Conductor Count 3 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 18/6 Device Supported Alarm, Phone Impedance 47 ohms Jacket Material PVC Jacket Type FT4, Riser Number of Conductors 6 Number of Pairs 3 Shielding Yes Solid or Stranded Stranded
-
TAA Compliant Yes
-
ADI Part Number Replaces WG-12161009 Model Number Replaces 12161009
-
Cable Length 1000' Color Gray Insulation Material PP Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
