Genesis 22185009 18/10 Stranded Shielded Cable, Riser, CMR, FT4, 500' (152.4 m) Reel, Gray
22185009
|WG-22185009
Color: Gray
Cable Length: 500'

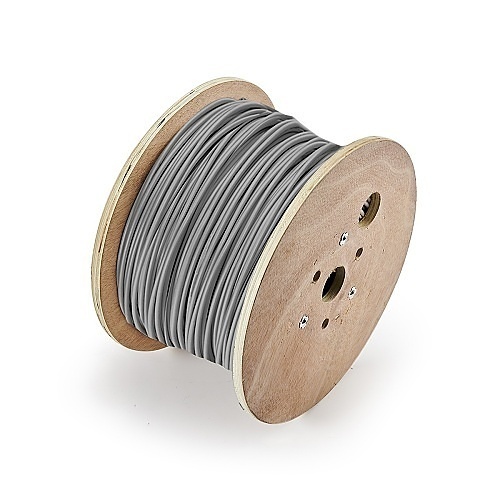

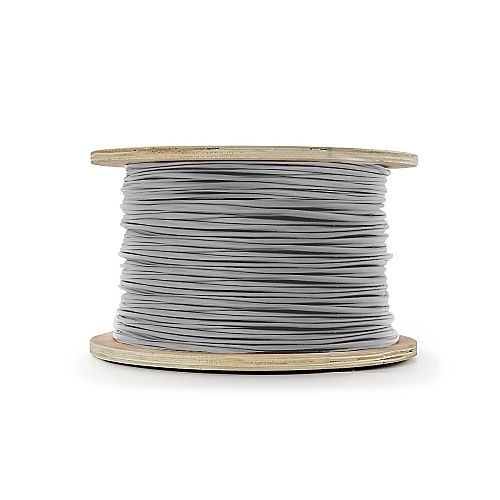

Package Type: Reel
Number of Conductors: 10
American Wire Gauge: 18AWG
Shop all Genesis
Genesis 22185009 18/10 Stranded Shielded Cable, Riser, CMR, FT4, 500' (152.4 m) Reel, Gray
22185009 | WG-22185009
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

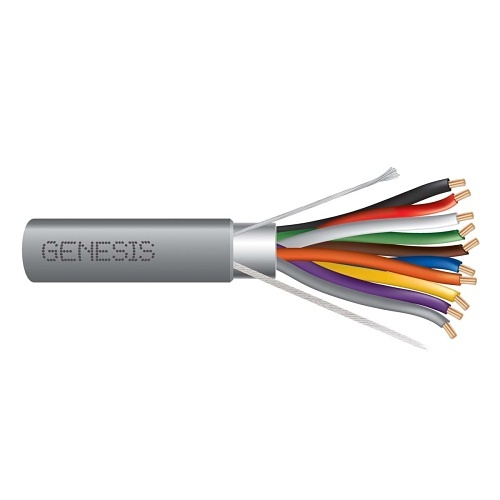

Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 22185009 18/10 Stranded Shielded Cable, Riser, CMR, FT4, 500' (152.4 m) Reel, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Riser Shielded Cables
UPC Code: 886618110832
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number WG-22185009 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 22185009 Packaged Quantity 1 Product Model 22185009 Product Name 22185009 - 18 AWG 10C STR Shielded Riser, Gray, 500 FT. Reel Product Type Access & Security Cable
American Wire Gauge 18AWG Cable Rating Riser Cable Type Multi-conductor, Multi-pair Conductor Count 5 Conductor Material Bare Copper Connector on First End Bare Wire Core/Cladding Diameter 18/10 Device Supported Audio Devices, Low Voltage applications, Security Jacket Material PVC Jacket Type FT4, Riser Material Bare Copper Number of Conductors 10 Number of Pairs 5 Shielding Yes Solid or Stranded Stranded
TAA Compliant Yes
Cable Length 500' Color Gray Insulation Material PP Package Type Reel Weight 33.50 lb
Limited Warranty 3-Year
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
